You can set a number of specific parameters which affect triggering a face recognition macro:

  1. Age of the individual (requires activation of the Gender and Age parameter, see 얼굴 검출 구성).
  2. Gender of the individual (requires activation of the Gender and Age parameter, see 얼굴 검출 구성). Value: 1 = female, 2 = male.
  3. TemperatureValue: body temperature of the individual (requires the Face Detection and Temperature Control, see Mobotix M16 TR 카메라를 이용한 얼굴 검출 및 온도 제어).

To set specific parameters, do the following:

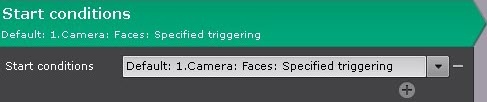

  1. Select Faces: Specified triggering event as a launch condition.
  2. Click .

  3. Specify a required parameter value in the corresponding field (1).

    Attention!

    The parameter is case-sensitive.

  4. In the Value (2) and Max value (3) fields, set the range of parameter values within which the macro will be triggered.

    Note

    Examples.

    If you set Age to [18, 100], the macro will be triggered only if the detection tool returns the age value of 18 or more.

    If you set Gender to [1, 1], the macro will be triggered only if the detection tool returns the individual's gender as female.

    If you set Gender to [2, 2], the macro will be triggered only if the detection tool returns the individual's gender as male.

    If you set TemperatureValue to [37, 100], the macro will be triggered only if the detection tool returns the temperature value of 37 or more.

  5. Add one or more actions into the macro (see 작업에 대한 특정 설정).
  6. Click the Apply button.
