The People Count report allows getting the data about the number of entering people. The data can be presented only as a chart.

Note

The People Count report is related to the People Counter detector (it is necessary to create the corresponding object in the Intellect software).

To create a People Count report, do the following:

  1. Select the People Count report type (see Selecting a type of reports by People Counter detector). As a result the dialog box for specifying the report parameters will be displayed.

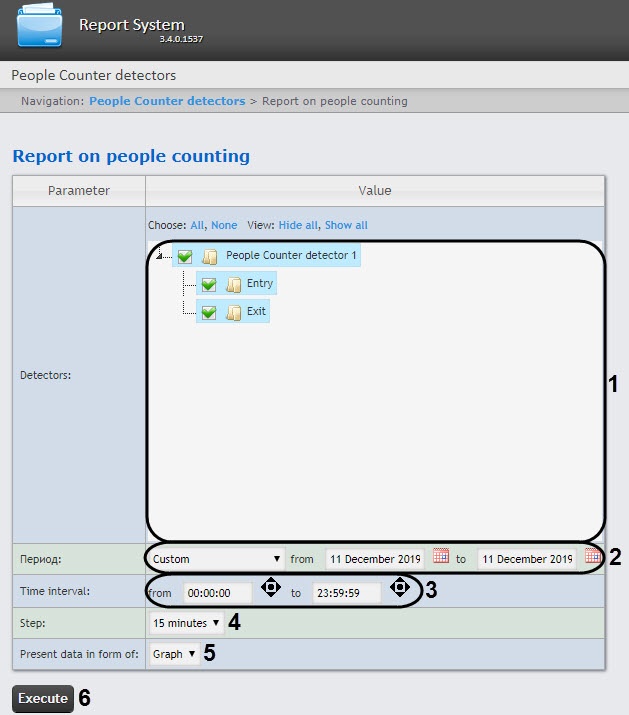

  2. Set the report parameters in the following way:

    1. In the Detectors field (1) set the checkboxes for those People counter objects which data should be displayed in the report. You can also set the Entry and/or Exit checkboxes to build a report on the number of entered and/or exited visitors.

    2. From the Receiving data period drop-down list select the time period for which the report is to be created (2).
    3. In the Time interval field (3), enter the time interval within the day; the passes made during this interval will be displayed in the report.
    4. From the Step drop-down list (4) select the time period during which the values received from people counter detector will be summed (depends on the Receiving data period parameter, see 2.b).
    5. From the Present data in form of drop-down list (5), select the report format: Table or Graph.
  3. To create a report click Execute (6).
    As a result the report with specified parameters will be displayed.
    The example of the report for the current day period:

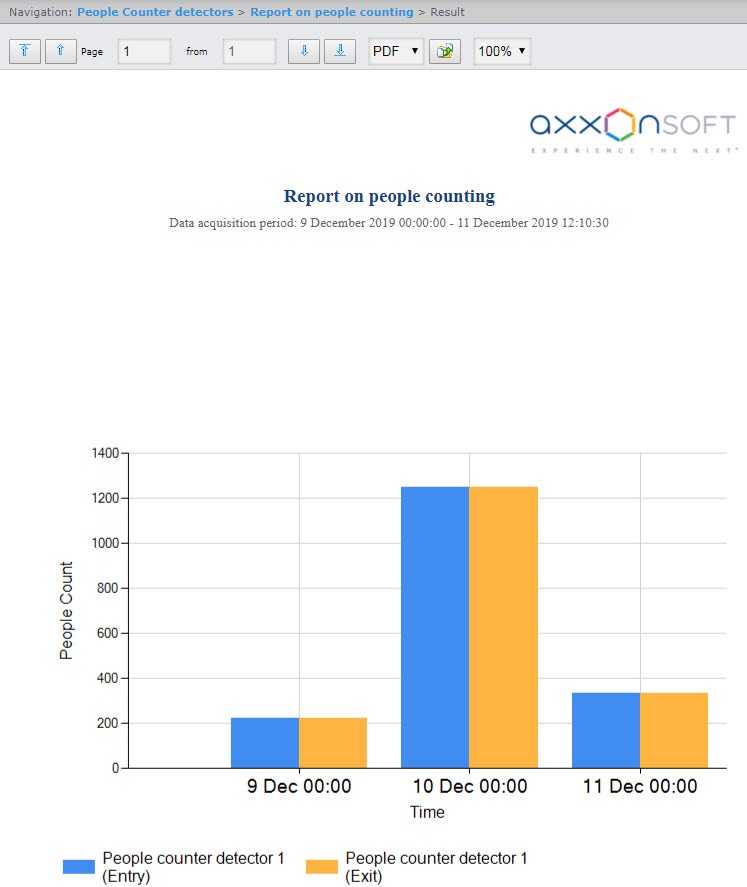

    The example of the report for the current week period presented as a graph:
