In order to create a report of current objects state, do the following:

  1. Select the Report of current objects state type (see Selecting a type of general report section).
  2. As a result the dialog box for specifying the report parameters will be displayed.

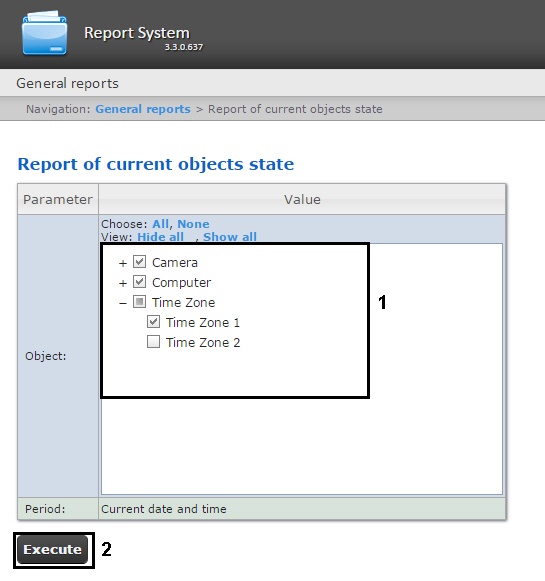

Set the following report parameters:

  1. In the Object: field set checkboxes in those objects which current state is to be displayed in the report (1).

    Note.

    Only objects with status displayed on the map are given in the Object field.

  2. Click the Execute button (2).

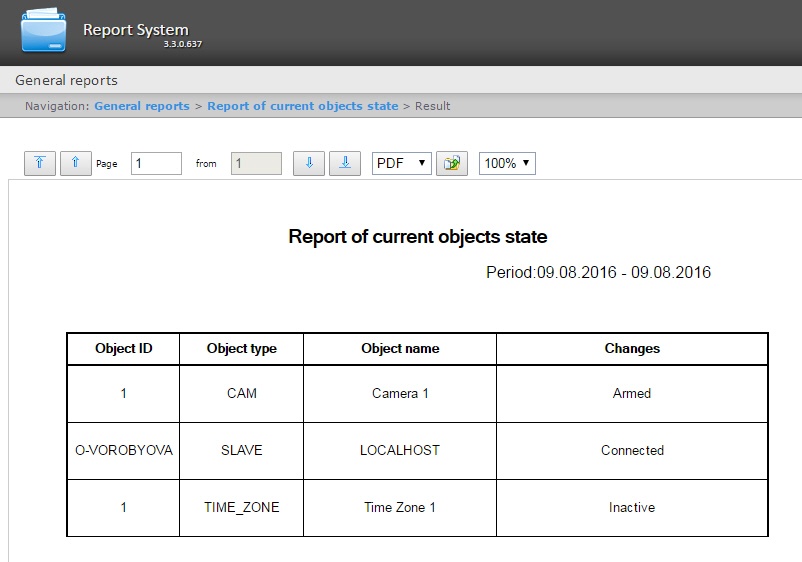

As a result a report of current objects state with specified parameters is displayed.
