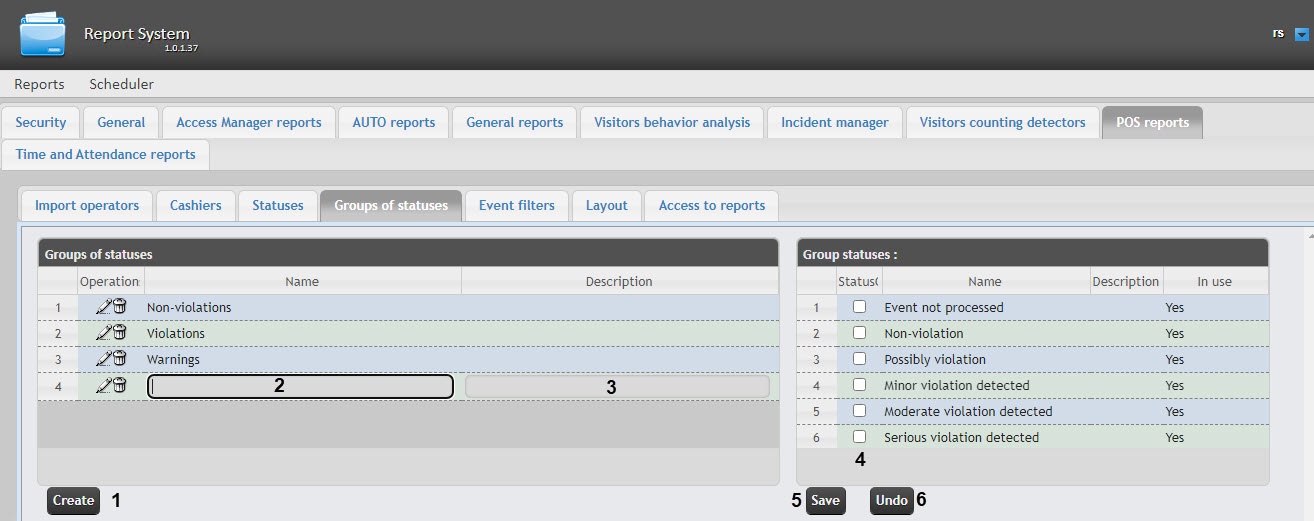

In order to create a group of statuses do the following:

  1. Go to the Groups of statuses tab.
  2. Click Create (1).
    As a result a new line is added to the Groups of statuses table. Fill in its fields:

    1. In the Name field enter the name of a new group of statuses (2).

    2. In the Description field enter a short description of a group of statuses (3).

      Note

      This field is optional for filling in.

  3. In the StatusColumn_Selected column of the Group statuses table (4) set checkboxes checked for those statuses that should be added to the group.

    Note

    One should make sure that these statuses are in use (in the In use field there is Yes). Otherwise the statuses will be ignored while making a report by group.

  4. In order to save parameters of a new group of statuses click Save (5). to cancel the creating a new group of statuses click Undo (6).

Creating a new group of statuses is completed.
