Make an auto-generated report as follows:

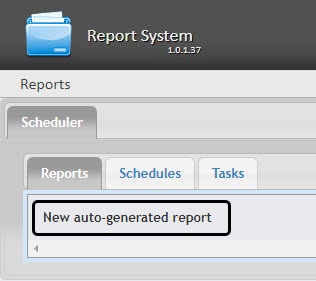

  1. Go to the Reports tab and click the New auto-generated report link.
  2. As a result the New report form is displayed.

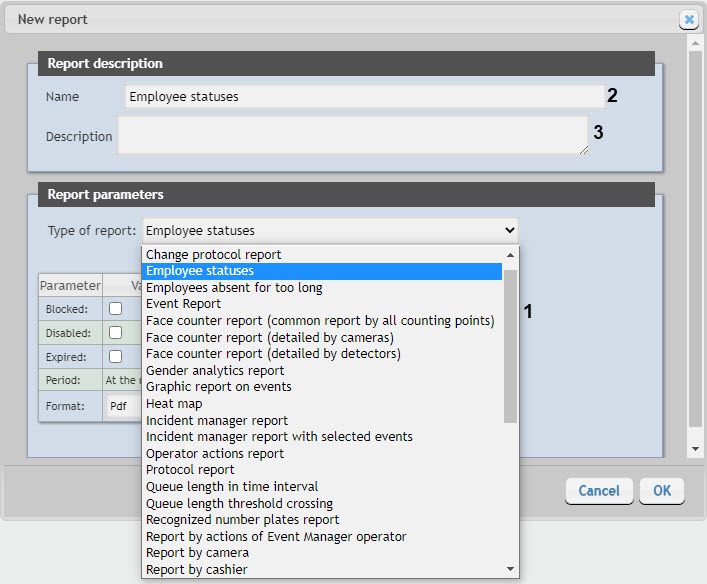

  3. In the Report parameters group select the required type of report from the Type of report list (1).
  4. In the Name field (2) of the Report description group the prior report name is displayed automatically. It can be edited if necessary.

  5. In the Description field (3) of the Report description group specify the description of the report contents.

    Note

    This field is optional.

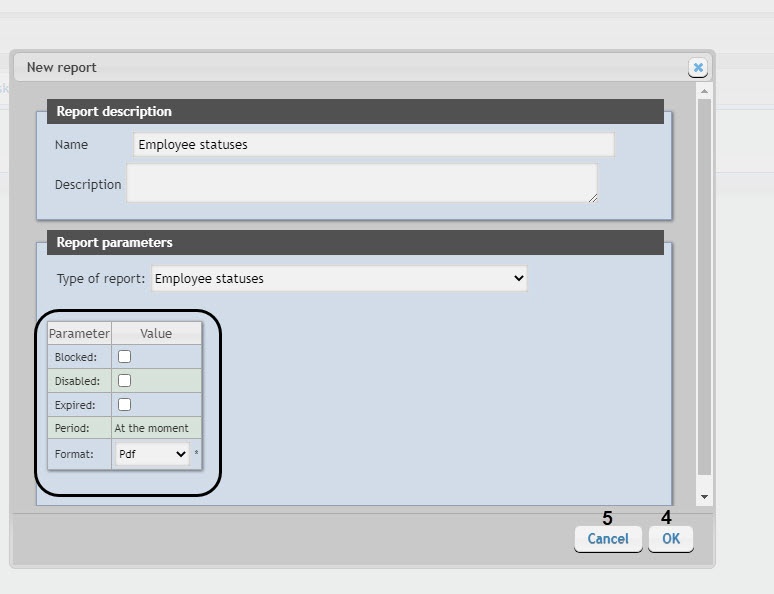

  6. Set the report parameters in the Report parameters group.

    Note

    The list of parameters is individual for every type of report and the same as the list of parameters of the corresponding report when working with reports (see Working with WEB Report System PSIM) with one exception: the Format drop-down list is available, in which you can select the required export format for this report. The list of available formats may differ depending on the generated report type:

    • PDF:
    • CSV:
    • Excel.

    Images are only supported in PDF format. If you export the report in a format other than PDF, only the text will be saved.

  7. In order to save the description and new report parameters click OK (4).

    Note

    In order to cancel making the report click Cancel (5).

Making the auto-generated report is completed.
