Note

To access the Recognized railway numbers report, it is necessary to activate it (see Configuring the Recognized railway numbers report).

The Recognized railway numbers report allows getting data about the railway numbers recognized within a specified time period.

Note

The Recognized railway numbers report is related to the LPR channel module, it is necessary to create and configure the corresponding object in Auto PSIM (see Setting up the LPR channel).

To create the Recognized railway numbers report, do the following:

  1. Select the Recognized railway numbers report type (see Selecting the type of Auto report). As a result the dialog box for specifying the report parameters will be displayed.

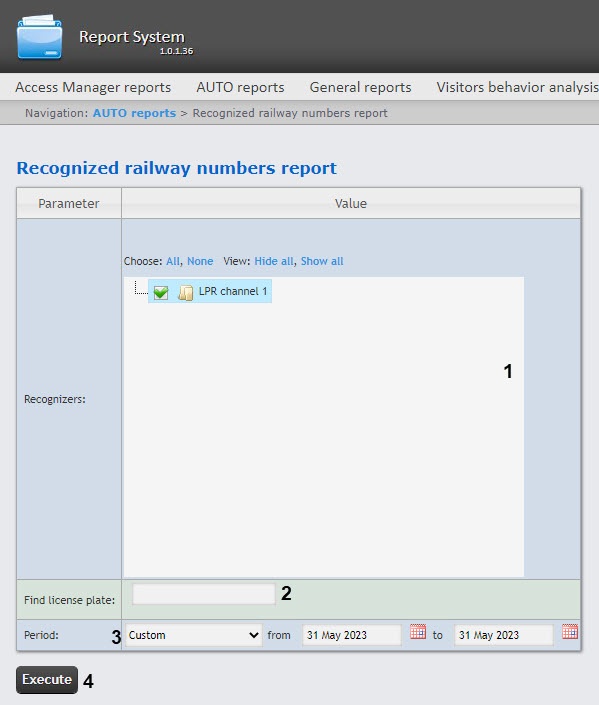

  2. Specify the report parameters in the following way:

    1. In the Recognizers field (1), set the check boxes for the necessary LPR channels according to which the report will be built.
    2. In the Find license plate field (2), you can specify a certain number by which all recognition events will be searched. Otherwise, the report will be built by all numbers recognized at the specified time interval.

    3. From the Period drop-down list (3), select the time interval for which the report should be built.

      Note

      If the Custom period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool.

  3. Click Execute (4) to run the report. As a result the report in the selected form is displayed.

    Attention!

    If the recognized railway number images and frames are stored in a folder on a disk, then to display the screenshots from the camera, it is necessary to configure the storage source for number plates and frames (see Configuring the storage source for Recognized number plates report and Recognized railway numbers report).

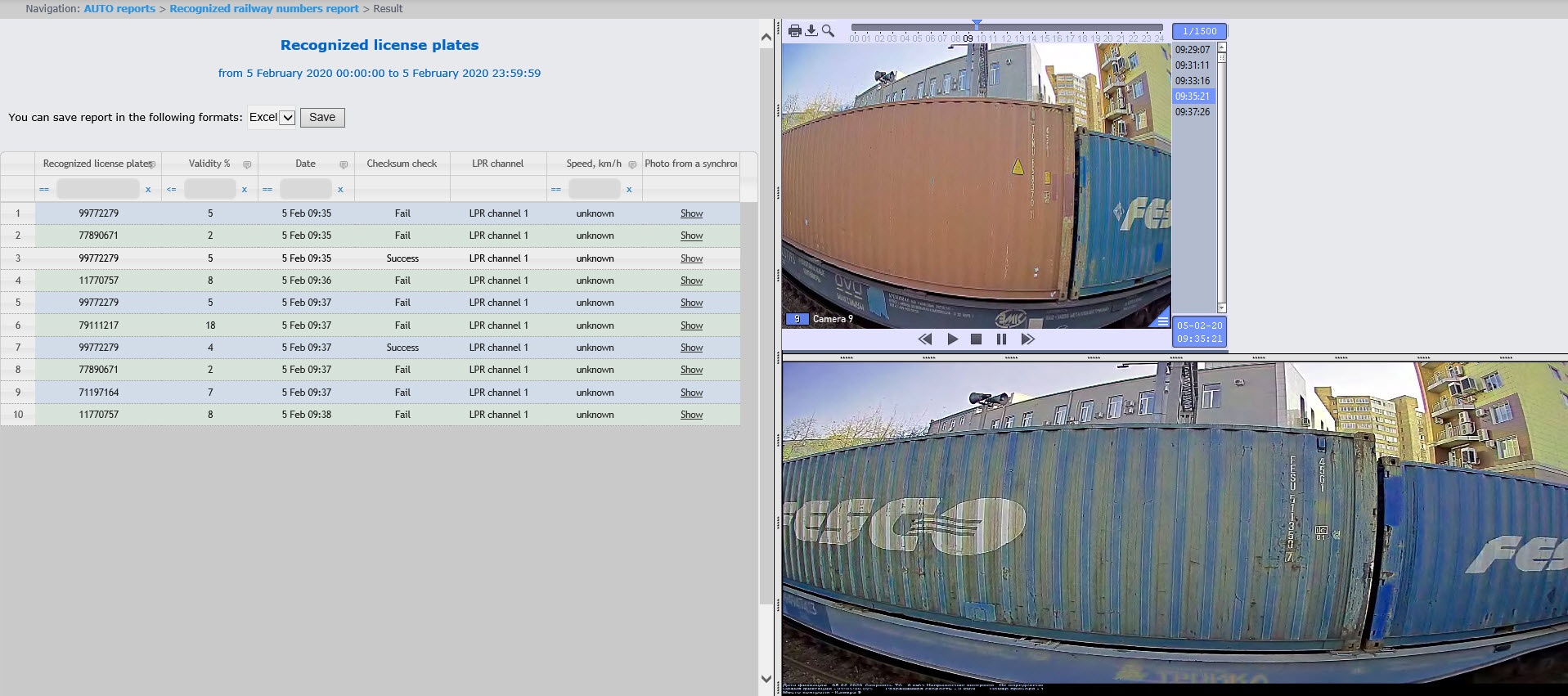

    The report table will contain railway numbers, the accuracy of number recognition, date, checksum check, recognizer, railway speed and photos from the linked camera. When you click on a row in the table, a screenshot from the camera will be displayed (in the lower right corner of the report) and, if there is access to the video archive, the video will be played (in the upper right corner of the report).

    Note

    Working with this table is described in Working with the generated Recognized number plates report and Recognized railway numbers report.

    To save the report to a file, select the appropriate report format and click the Save button.

    Attention!

    This report cannot be generated automatically.
