This section outlines a step-by-step instruction on how to install INTELLECT™ software onto a Client workstation.

Note.

The following features are to be taken into account while installing INTELLECT™ software:

  • INTELLECT™ software is to be installed on a “clean” Windows OS (see the Operating system requirements section).
  • To install INTELLECT™ software, administrator rights are required.
  • INTELLECT™ software is to be installed in the folder, which appears by default in the corresponding dialog box of the installation program (i.e., “C:\Program Files \ Intellect”). It is not recommended to change the names of the logical disk and folder for the installation.
  • Versions of INTELLECT™ software installed on the Client and Server/Administrator's workstation are to be the same. Otherwise, their operation is not guaranteed.

To install INTELLECT™ softwareas a Client, do the following:

  1. Unpack the installation kit as described in Getting ready for Intellect installation; the destination folder will show the contents of the kit.

  2. Run the setup.exe file to start the INTELLECT™ software installation procedure.
    As a result the dialog box of choosing language is displayed.

    Note

    The notification box is displayed if Microsoft.Net Framework 4.0 has not been installed.

    Click Yes for Microsoft.Net Framework 4.0 auto installation.

    Attention!

    When INTELLECT™ is installed on Windows 8 and Windows Server 2012 OS, the Microsoft.Net Framework 4.0 or later is to be pre-installed. If the Microsoft.Net Framework 4.0 or later has not been installed, then the warning is displayed. In this case stop installing INTELLECT™ and install the Microsoft.Net Framework 4.0 or later. You will find the instructions on how to install it at: http://msdn.microsoft.com/en-gb/library/hh506443.aspx
  3. Choose the language of INTELLECT™ software installation and click Install.

    As a result the Type of installation dialog box is displayed.
  4. Select the Client type of installation.

  5. To log all installation events, set the Enable full installation log checkbox.

    Note

    While installing and uninstalling the software events are logged to Intellect.log and Intellect uninstall.log correspondingly. To collect log-files, the “Support.exe” tool is to be used (see The utility for collecting configuration data on servers and RWS for the Technical Support section).
  6. Click the Next button.
    The Selecting components for installation dialog box is displayed.

  7. Set the checkboxes next to the components that are to be installed.

    Note

    All offered components are recommended to be installed.

     If you are not installing from a disk, you will also be able to select the languages to be installed. To do this, download the language pack from AxxonSoft official website (https://www.axxonsoft.com/) before beginning the installation and put the archive's files into the languages folder in the installer's directory. As a result, the Selecting components for installation window will offer the ability to select the languages to be installed.


    Note

    If this method of installing languages is not suitable, each language may be installed separately (see Installing the language). After the installation, use the utility tweaki.exe to switch languages (see Switching languages in the Intellect Software System).


    Click the Install button.
    Necessary prerequisites auto installation will be performed.

    Attention!

    Auto installation of necessary prerequisites may require more than 10 minutes.


    After this the Welcome to the Intellect Setup Wizard box is displayed.

  8. Click the Next button.
    The License Agreement dialog box is displayed.
  9. Read the License agreement and accept its terms by setting the switch into the I accept the terms of the License agreement position, otherwise the INTELLECT™ installation will be stopped.
  10. Click the Next button.

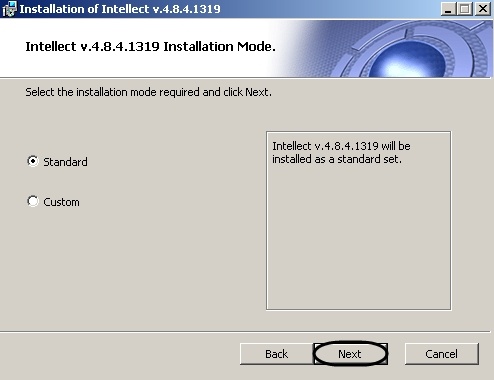

    The dialog box of installation mode selection is displayed.
  11. Select the installation mode.

  12. Click the Next button.

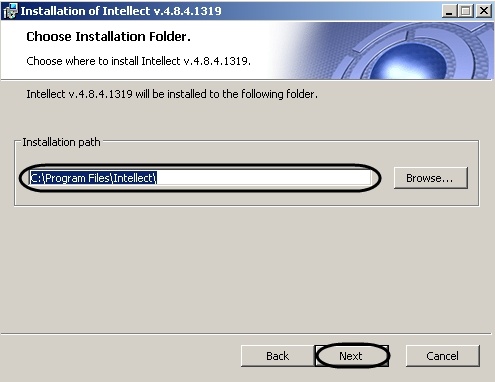

    When the Custom installation mode is selected, the dialog box of choosing the installation folder is displayed. This step is omitted when the Standard installation mode is selected.

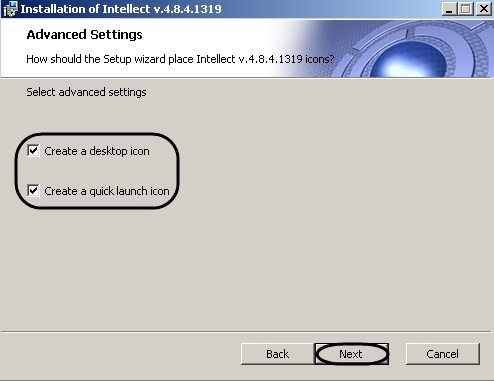

    The Advanced settings dialog box is displayed.

  13. If a desktop icon is to be created, set the corresponding checkbox.
  14. If a quick launch icon is to be created, set the corresponding checkbox.

  15. Click the Next button.

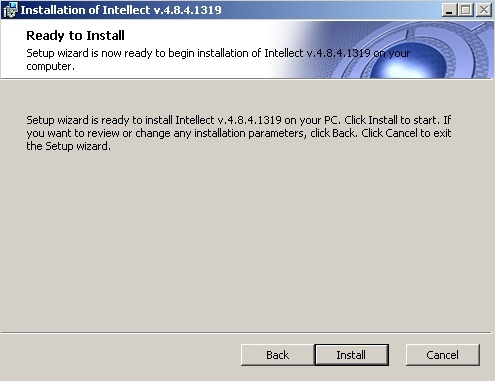

    The Ready to install dialog box is displayed.

    Note.

    To change the setting, click the Back button.
  16. Click the Install button.

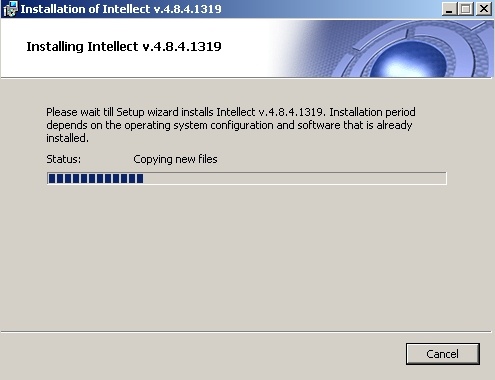

    The Installing Intellect dialog box is displayed.

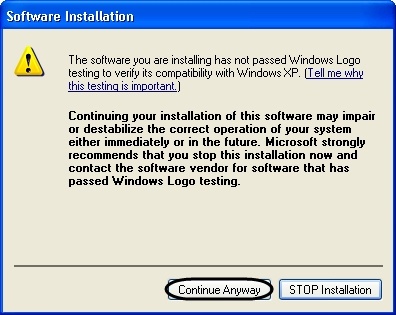

    The Software Installation dialog box is displayed.
  17. To continue the installation, click the Continue Anyway button.

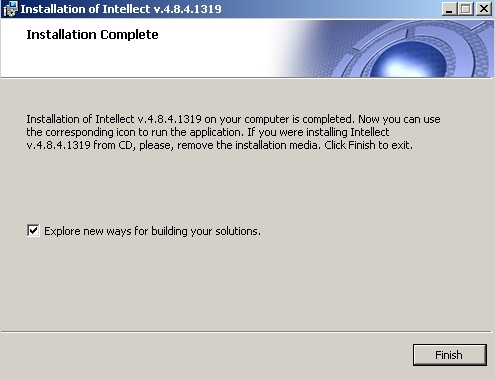

    The Installation Complete dialog box is displayed.
  18. Set the Explore new ways for building your solutions checkbox, to view thw document containing information about new features of the installed Intellect.
  19. Click the Finish button.

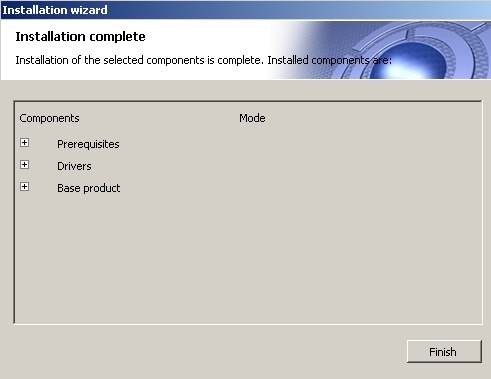

    Then the Installation wizard dialog box is displayed, containg the information on the mode (installed or not) of Intellect components.
  20. Click the Finish button.

The Intellect with the Client type of installation is now installed.
