If the video camera supports multistreaming, you can select the quality of the video stream that you want to display in the viewing tiles.

Note

If the video camera is not configured for multiple video streams, this action is not available (see The Video Camera Object).

To select the video stream quality, do as follows:

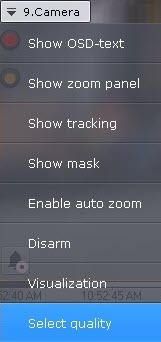

  1. In the context menu of the viewing tile, select the Select quality item.

  2. Select the quality of the video stream that you want to display in the viewing tile.

    Item

    Description

    Auto (GreenStream, default)

    The camera has two video streams: high quality video stream and low quality video stream. If the size of the cell where the video image from the camera is displayed is close to the low quality resolution with a 10% height or width margin, the video image will be displayed using the low quality stream. In other cases, the high quality video stream will be displayed

    High quality

    A high quality video stream is used in the video surveillance window (see The Video Camera Object)

    Low quality

    A low-quality video stream is used in the video surveillance window (see The Video Camera Object). When you enlarge the surveillance window, the video stream switches to a high quality video stream

    Note

    The automatic video stream selection (the Auto item) is unavailable, if automatic resolution selection is set for any stream (see The Video Camera Object).

  3. Click in the area between the tiles.

Selection of the video stream quality in the viewing tile is complete.

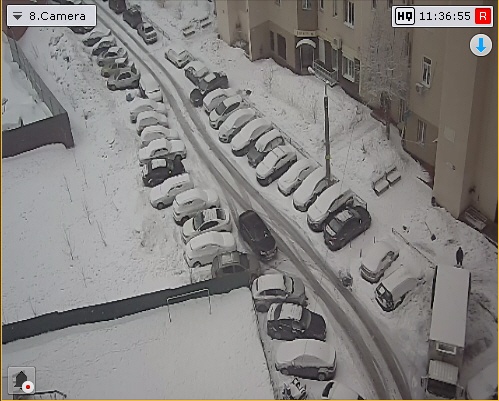

The symbol in the video surveillance window indicates high quality stream.
