A counter is a tool that allows you to count any values based on events. You can create and edit counters in the Programming tab.
Attention!
The counters work only within a single Axxon-domain. The objects belonging to another Axxon-domain cannot be used in the Increase conditions and Decrease conditions.

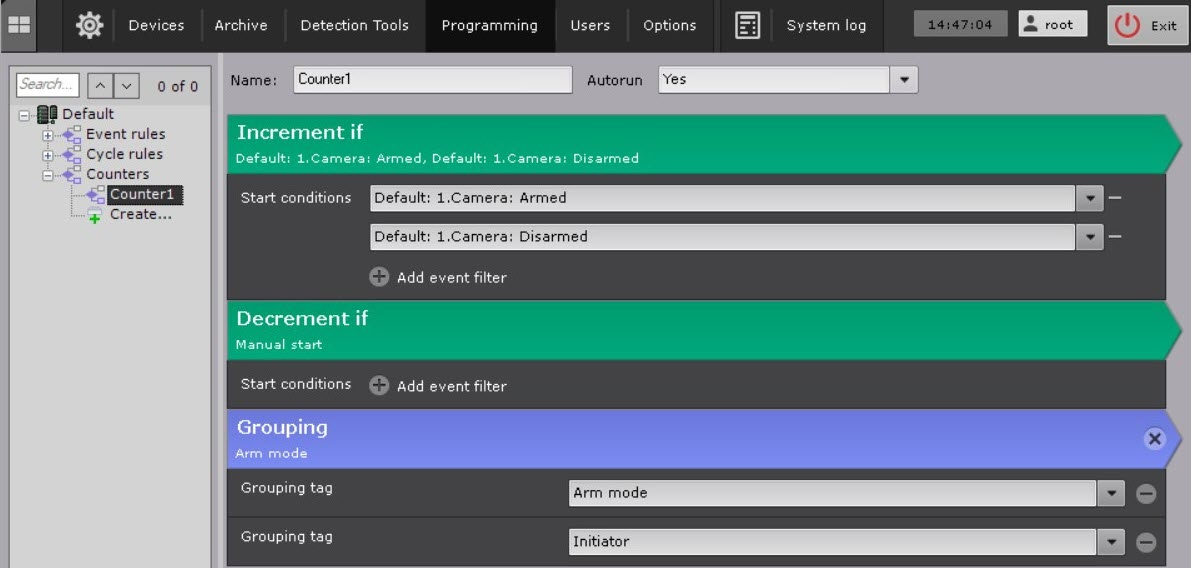

When creating a counter, select one or more events that increase the value of the counter, and one or more events that decrease the value (see 카운터 생성 및 구성).
By default, the counter value is 0, each selected event increases or decreases it by 1.
Attention!
The counter value is reset to 0 when:
- Server restarts;
- Counter settings change.
In practical terms, counters can be used, for example, to count visitors at a site or facility. In this case, counting is based on faces captured by cameras with facial recognition installed at the entrance and exits.
Counters can be added to the map (see 카운터 추가), and managed both from the map (see 맵에서 장치 제어) and using a macro (see Managing the counter).
