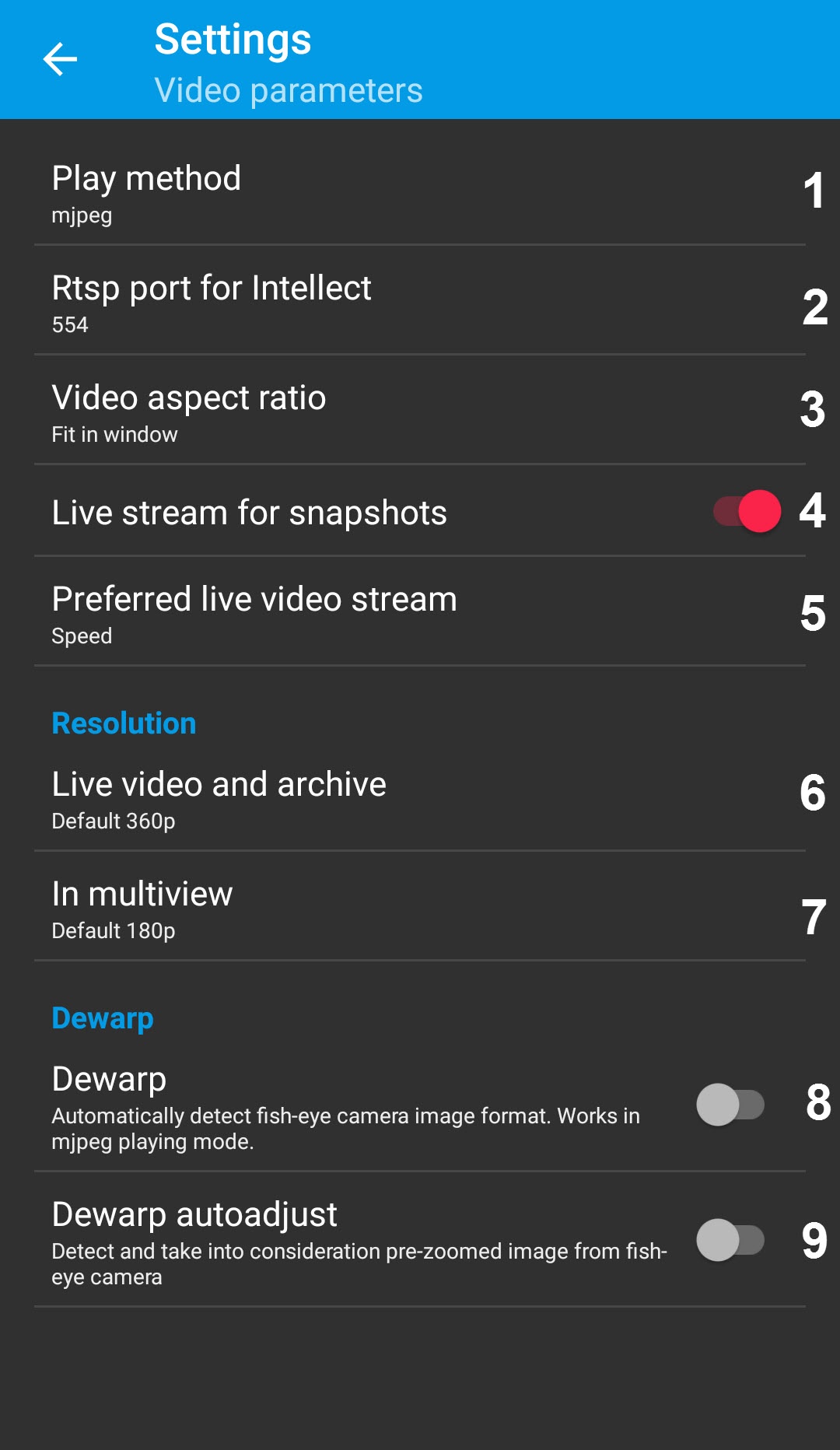

Configure the video parameters as follows:

  1. Select the video playback format (1):

    • mjpeg — supports all codecs, the most resource-intensive format;

    • mp4 via ffmpeg — less resource-intensive than mjpeg, supports the H.264 and H.265 codecs;

    • rtsp via ffmpeg (h.264) — less resource-intensive than mjpeg, supports the H.264 and H.265 codecs, the video is transmitted via the RTSP protocol.

      Note

      The playback method depends on the codec used by each camera. If you select the playback format that does not support the codec used by the camera, then it will be automatically switched to mjpeg. If you view the video from the Intellect Server, the playback format switch may take 8-9 seconds. If you view the video from the Axxon Next Server, then the playback format is switched without delay.

  2. Specify the RTSP port set in the Intellect settings (2, see Configuring RTSP Server module).

    Note

    If Intellect 4.11 or later is in use, then there is no need to specify the RTSP port.

  3. Select the video aspect ratio (3): fit in window; window; fill in window; expand video.
  4. Live stream for shapshots (4): when the parameter is enabled, the live streams are displayed in the quad; when the parameter is disabled, the frames updated in some time interval are displayed.

  5. Select the preferred live video stream, which will be applied by default (5): speed — low quality video stream; quality — high quality video stream.

    Note

    This option is available only for the Axxon Next server connection.

  6. Select the resolution of live and archive video when displaying on the screen (6):

    • Default 360p - display video with 480 x 360 constant resolution.
    • QCIF 144p - display video with 176 × 144 constant resolution.
    • 4CIF 576p - display video with 704 × 576 constant resolution.

    • Maximum 1080p - display video with 1920 x 1080 constant resolution.

  7. Select the video resolution in the multiview when displaying on the screen (7):

    • Default 180p - display video with 320 x 180 constant resolution.
    • SQCIF 96p - display video with 128 × 96 constant resolution.
    • QCIF 144p - display video with 176 × 144 constant resolution.
    • CIF 288p - display video with 352 × 288 constant resolution.
    • 4CIF 576p - display video with 704 × 576 constant resolution.

    • Maximum 1080p - display video with 1920 x 1080 constant resolution.

      Note

      These restrictions are recommended when your mobile device has a slow Internet connection.

  8. Activate the Dewarp (8) parameter for auto detection of fish-eye camera image format. It operates in mjpeg playback format (see 1).

  9. Activate the Dewarp autoadjust (9) parameter for correction of non-standard image from fish-eye camera.

Video parameters are configured.
