The image can be exported in the following modes:
- In the live view mode (see Viewing live video in the Android mobile client).
- In the archive view mode (see Viewing previously recorded video in the Android mobile client).
To export the image, do the following:

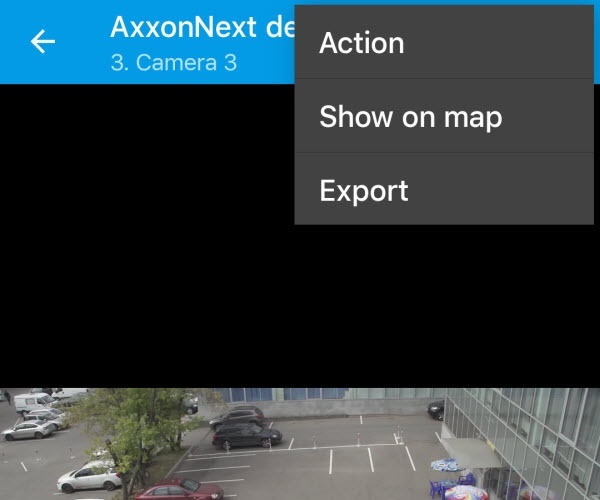

Сlick the
button and select Export.

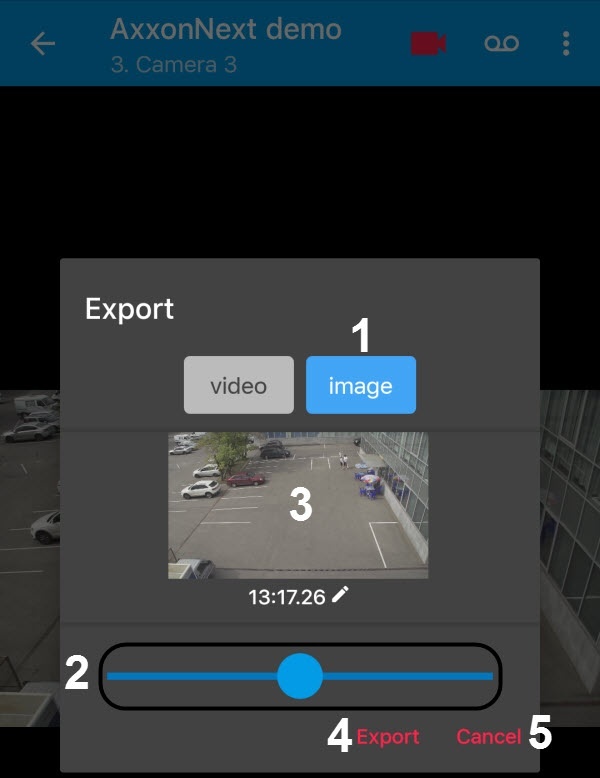

Click on the Image button (1).
Note
The Image button (1) is only available when connected to the Axxon Next Server. If connected to the Intellect Server, skip this step.
- Using the slider (2), select the timepoint of the image to be exported (using the slider, you can select a timepoint from no later than 2 minutes from the current time).

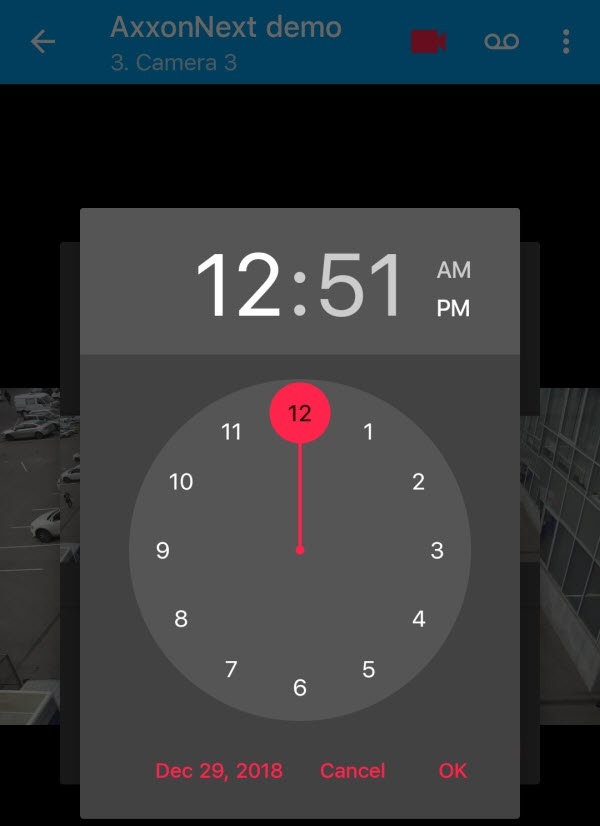

- To select an arbitrary timepoint, click on the image (3) and select the timepoint in the appeared window.
Click the Export button (4) to start exporting the image.
Note
To cancel the image export, click Cancel (5).

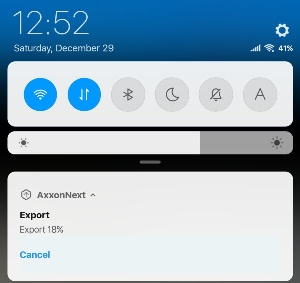

As a result, the image export progress will be displayed in the notification panel. To cancel the image export, click Cancel on the AxxonNext notification.

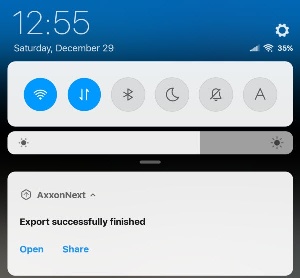

After the image has been exported, the export status will be displayed.
Attention!
The image is exported to the following path: /Internal memory/Pictures/AxxonNext/. The information about the date (the current date if the image was exported in the live view mode, or the archive date), the Server name and the video camera name will be added to the image.
To view the image, click the Open button on the AxxonNext notification.
Note
All exported images are managed on the screenshots screen (see Screenshots screen).
To share the image, click the Share button on the AxxonNext notification.
The image export is complete.
