To view live video, select the necessary camera.

Note

If you select a camera while an events board is displayed, instead of going to live video mode you will be taken to the video recorded from this camera when the event began (in other words, the beginning of the current alarm). Playback will be paused.

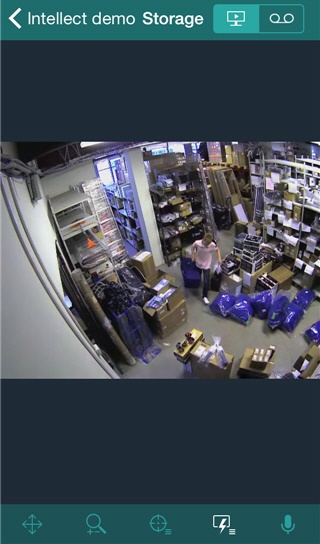

The window with live view of the selected camera is displayed.

Note

If the mjpeg playback format is selected (see Configuring video in mobile Client iOS) and the captioner is configured for a camera in Intellect (see The Captioner object setup), then captions are displayed on the video.


Scroll the screen down (to view video from the previous camera) or scroll it up (to view video from the next camera) for quick switch to viewing video from another camera.

To play live audio, in the web server settings, choose a microphone for the camera (see Selecting and configuring cameras for the Web-server module).

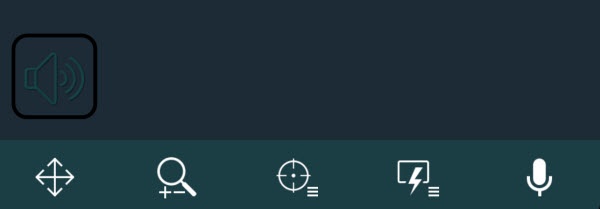

If a speaker has been selected for the camera in the web server settings (see Selecting and configuring cameras for the Web-server module), then the start/stop sound button  is enabled on the bottom control panel in order to transmit sound from the iOS microphone on the selected Intellect speaker.

Note

Receiving audio from the Axxon Next Server is enabled only for the H.264 RTSP (ffmpeg) audio playback format and for the cameras with h.264 stream (see Configuring video in the iOS mobile client).

Audio playback enabling and disabling is controlled by the button.

To return to the list of cameras, tap the Back button.
