Integration with ECHD (Unified data center) is supported in Intellect. Requests to Intellect are made in ECHD using HTTP API – see Intellect HTTP API document. Some requests have http/https interface. These requests are used to get info on configuration. The rtsp Server bound to the Web-server object streams live or archived video.

Besides binding the Web server to the RTSP server the ECHD channel objects are to be created under the Camera object for ECHD requests performance.

Note.

Information on how to create and configure the rtsp Server object is given in Configuring RTSP Server module section.

Bind rtsp Server object to process ECHD requests as follows:

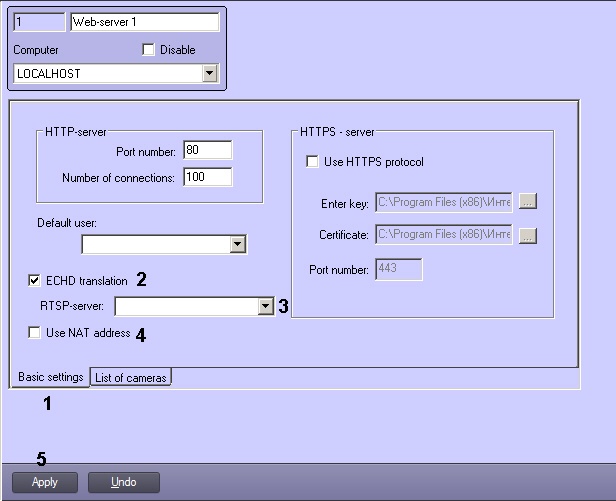

  1. Go to the General settings tab on the settings panel of the Web-server object (1).
  2. Set the ECHD translation checkbox checked (2).
  3. Select created and pre-configured rtsp Server object in the rtsp Server dropdown list (3).

  4. If the CCTV servers are located behind NAT when interacting with the ECHD, then to use the NAT address (4), set the Use NAT address checkbox to substitute the router address in the SDC requests.

    Note.

    The address and port of the router are set during the configuration of the RTSP Server object.

  5. Click the Apply button (5).

The rtsp Server object is now bound to Web-server object.
