Example 1. The regions created in the system are used to group the system objects, representing the devices by their location on the secure territory.

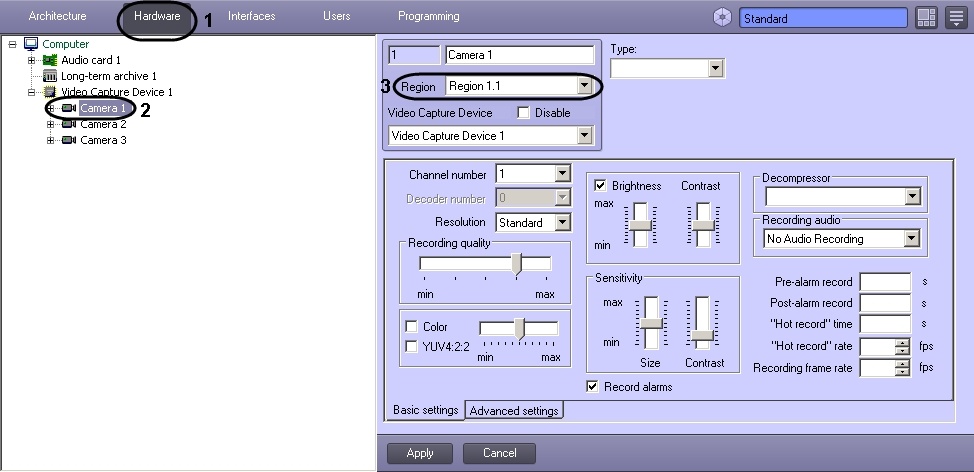

To include a device into a Region, select an appropriate region in the Region field of the settings panel of the corresponding object.

Example 2. Arming all cameras included into Region 1 when Macro 2 is run. Parameters of macro (Macro 1) essential for this operation are given in the table.

Event

Action

Parameters

Macro 2 is executed (1)

The Control objects action of Region 1 is executed (2)

Reaction type = «ARM»

Object type = «CAM»  (3)

Example 3. INTELLECT™ allows displaying reports about devices grouped in Regions.

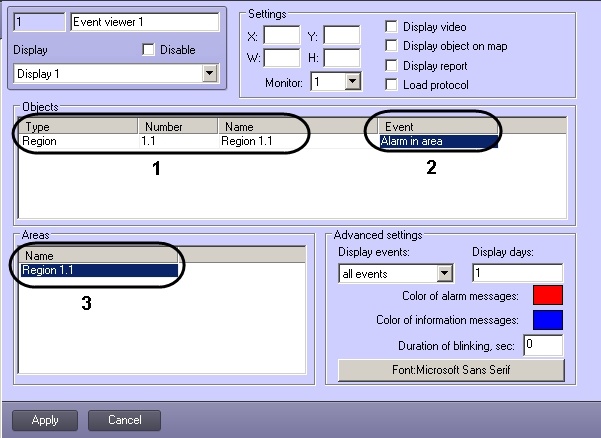

Figure below shows the Event Viewer object configuration to display a report on the Alarm in area event on any of the devices in Region 1.
