Axxon PSIM has an option of Telemetry control using the Monitor object. The control is performed with the help of a mouse or joystick.

By default, the PTZ control option with the use of the Monitor object is disabled. To enable the PTZ control option, the control priority must be set for the Monitor object (see Installing and configuring security system components guide).

To set PTZ control priority using the Monitor object, do the following:

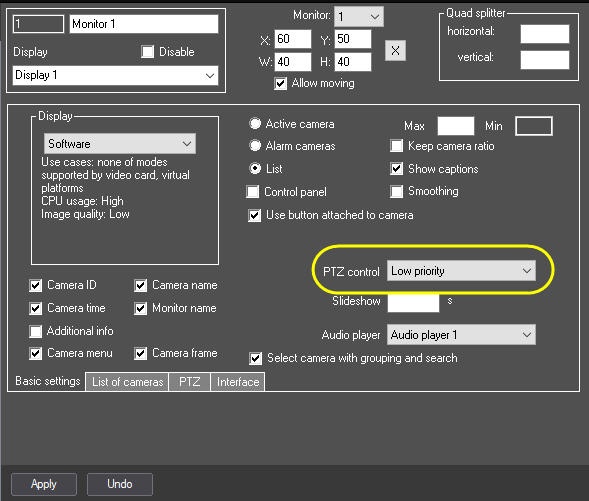

  1. Go to the Basic settings tab on the settings panel of the Monitor interface object.

  2. From the the PTZ control drop-down list, select the required Telemetry control priority.

    Note

    To disable PTZ control option using the Monitor object, select the Forbidden value.
  3. To save the changes, click the Apply button.

Telemetry control priority using the Monitor object is now set.
