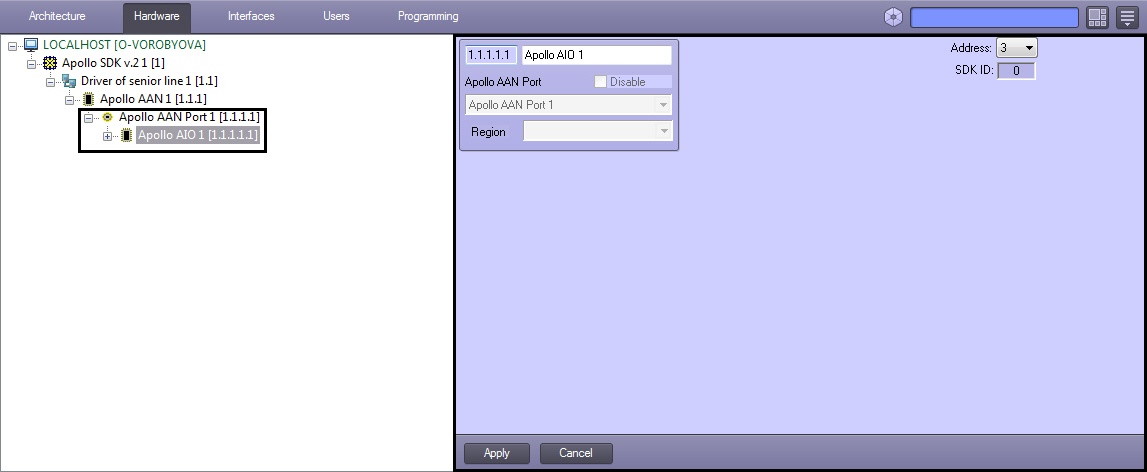

The AIO interface module is configured on the settings panel of the Apollo AIO object created on the basis of the Apollo AAN Port object.

To configure the AIO interface module, do the following:

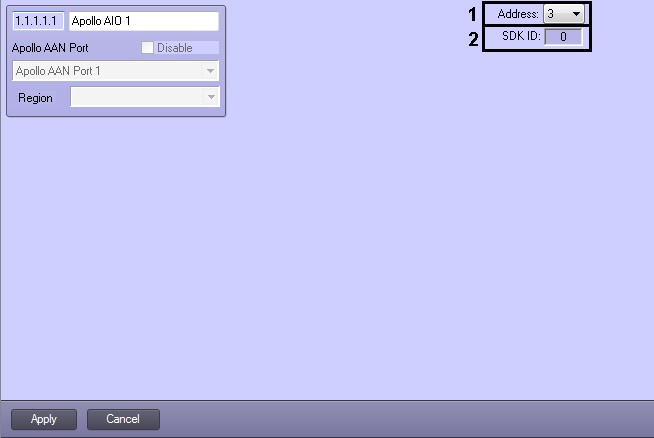

  1. From the Address drop-down list select address of module in internal network (1).

    Note

    The SDK ID (2) field is filled in automatically while object creating and it contains different values for objects of the same type. It's not recommended to create objects by template (see The Save function) for correct working of module because of equal SDK ID values.

  2. Click the Apply button.

The AIO interface module is now configured.
