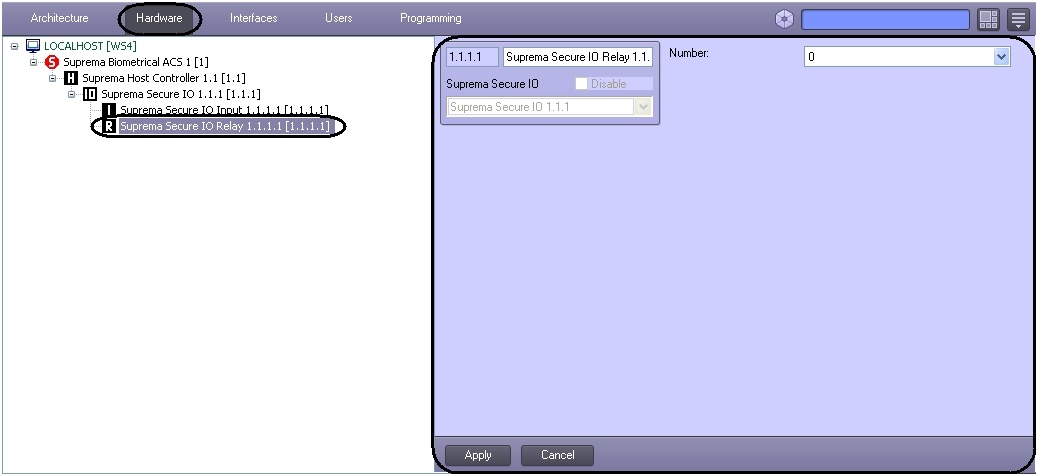

The Suprema Secure IO Relay object is configured on the Suprema Secure IO Relay object's settings panel. This object is created based on a Suprema Secure IO object on the Hardware tab of the System Settings dialog.



To configure the Suprema Secure IO Relay do the following:

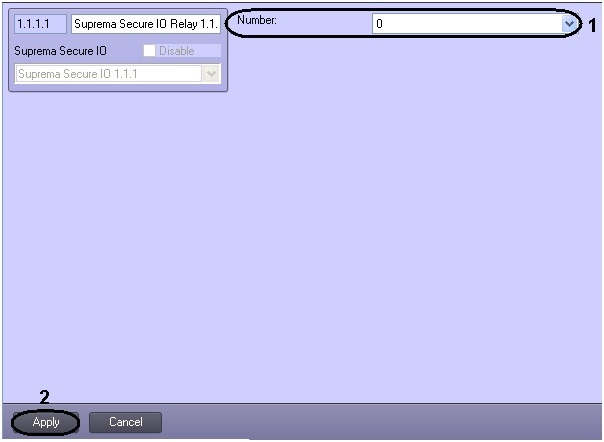

  1. Go to the Suprema Secure IO Relay object’s settings panel.
  2. From the Number: drop-down list select the number of the controller input (1).
  3. To save changes click the Apply button (2).

This completes the configuration of the Suprema Secure IO Relay object.
