It's possible to crop the assigned photograph in the Access Manager software module.

To crop a photograph, do the following:

  1. Go to editing a user (see the Going to user editing section).

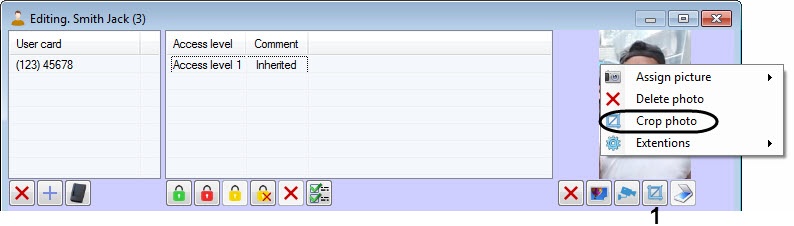

  2. Click the  button (1). As a result, the Framing window will open

    Note

    You can also open the Framing window by right-clicking on the user’s photo area and selecting Crop photo from the opened functional menu.

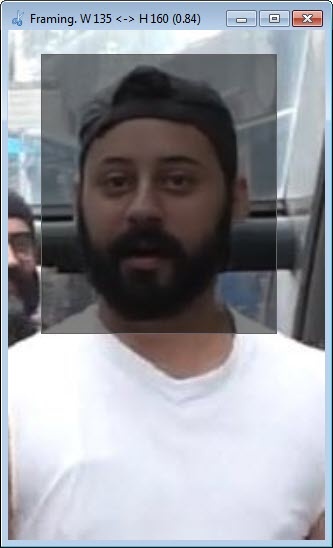

  3. Select the area which should remain in the photo. To do this, left-click the required point and stretch the rectangle marking the selected area. The selected area can be moved by holding down the left mouse button on the rectangle.

    Note

    In the upper part of the Framing window displays the width "W" and height "H" in pixels, and the aspect ratio of the selected area in parentheses.

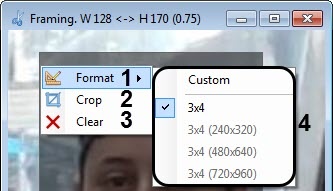

  4. To select the preset size of the resulting photo or the aspect ratio of the rectangle, right-click, either on the selected area, or in the area not marked by the rectangle, and in the opened function menu select Format (1) → <required size or aspect ratio> (4).

  5. To delete the selected area, left-click on the area not marked by the rectangle and make the selection again. Or right-click on the selected area and select Clear (3) in the opened function menu.

  6. To confirm cropping of the photo, right-click on the selected area and select Crop (2) in the opened functional menu.

Cropping a photograph is completed.
