Important!

Before creating the ATM-Monitoring object, create and configure the ATM-Intellect Workstation or ATM-Intellect Workstation TC object depending on the installation type (see Creating ATM-Intellect Workstation objects in the hardware tree or Creating ATM-Intellect Workstation TC objects in the hardware tree, correspondingly).

The ATM Monitoring object configuration is different for the ATM Intellect Workstation and the ATM Intellect Workstation TC objects.

To configure the ATM Monitoring object proceed as follows:

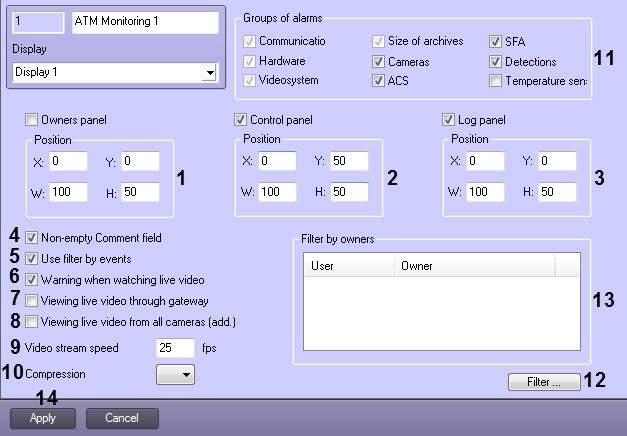

  1. Go to the ATM Monitoring  settings panel.
  2. If it is necessary to display the Owner Panel component on the screen, select the Owner Panel check box and specify the component coordinates the on-screen coordinates of the component (1).
  3. If the Control panel displaying is needed, set the Control panel checkbox and specify its coordinates on the screen (2).
  4. If the Log panel displaying is needed, set the Log panel checkbox and specify its coordinates on the screen (3).
  5. The setting Non-empty comment field is used if the operator is required to comment on the alarm and/or their actions when the alarm is accepted (4). This comment is available for viewing in the event log as well as the name of the operator who accepted the alarm.
  6. By default, objects can be filtered by Alarm and Failure events as well as by Connected and Disconnected states on the Control Panel. Uncheck the Use filter by events box to disable this feature (5). As a result, the corresponding drop-down list becomes disabled on the Control Panel.

  7. If when live video is attempted to be viewed from Control Panel it is necessary to display a warning that it can create the critical load per channel, set the Warning when watching live video checkbox (6).

    Note.

    This setting is not available for ATM-Intellect Workstation TC installation type.

  8. If ATM-Intellect Pros and Additional workplaces are in different subnets and the ATM-Intellect components are not in a distributed system configuration in Intellect object tree and Data gateway is in use for transmission of live video to Additional workplaces, set the Viewing live video through gateway checkbox (7).

    Note

    For the details about the Data gateway, see Creating and configuring Data gateway.

  9. To add the "All cameras of Surveillance Object" item to the object's "Video image playback" context menu on the Control Panel which enables viewing video from all cameras of the selected Surveillance Object, set the Viewing live video from all cameras (add.) checkbox (8).

  10. In the Video stream speed field specify the frame rate for live video displaying in frames per second (9). This parameter is used to limit the flow of data between the ATM Intellect Workstation and the ATM Intellect Pro (for example, in the case of low-bandwidth communication channel) while viewing live video from the objects through the ATM Monitoring window (see document ATM Intellect. Operator's guide).

    Note.

    This setting is not available for ATM Intellect Workstation TC installation type.
  11. Select the required compression rate for the live video in the Compression drop-down list (10).
  12. Select groups of alarms to be displayed (11).

  13. If specific owners are to be available for specific users on the Owner Panel, then set the filter by owners:

    1. Click the Filter… button (12).

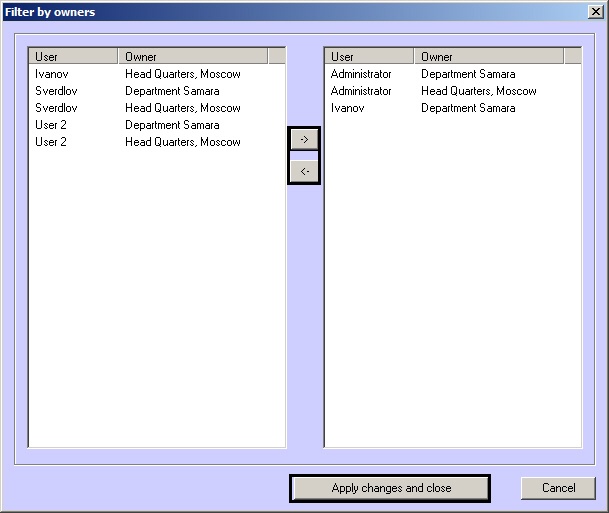

    2. The Filter by owners window appears. The list of available user-owner pairs is on the left, the list of selected ones is on the right.

      Note.

      The list of owners is set on the Control Panel – see Reference information section of Operator's Guide.
    3. Users and their rights are configured in the Users tab of the System settings dialog box – get information on how to do it in the Intellect Software Package. Administrator’s Guide. The latest version of this document can be found in AxxonSoft documentation repository.
    4. Move the pairs between the lists using the <- and ->buttons.
    5. When the list of user-owner pairs is formed, click the Apply changes and close button.
  14. Selected pairs of users and owners are displayed in the table (13).
  15. Click Apply (14).

Configuring the ATM Monitoring object is completed.

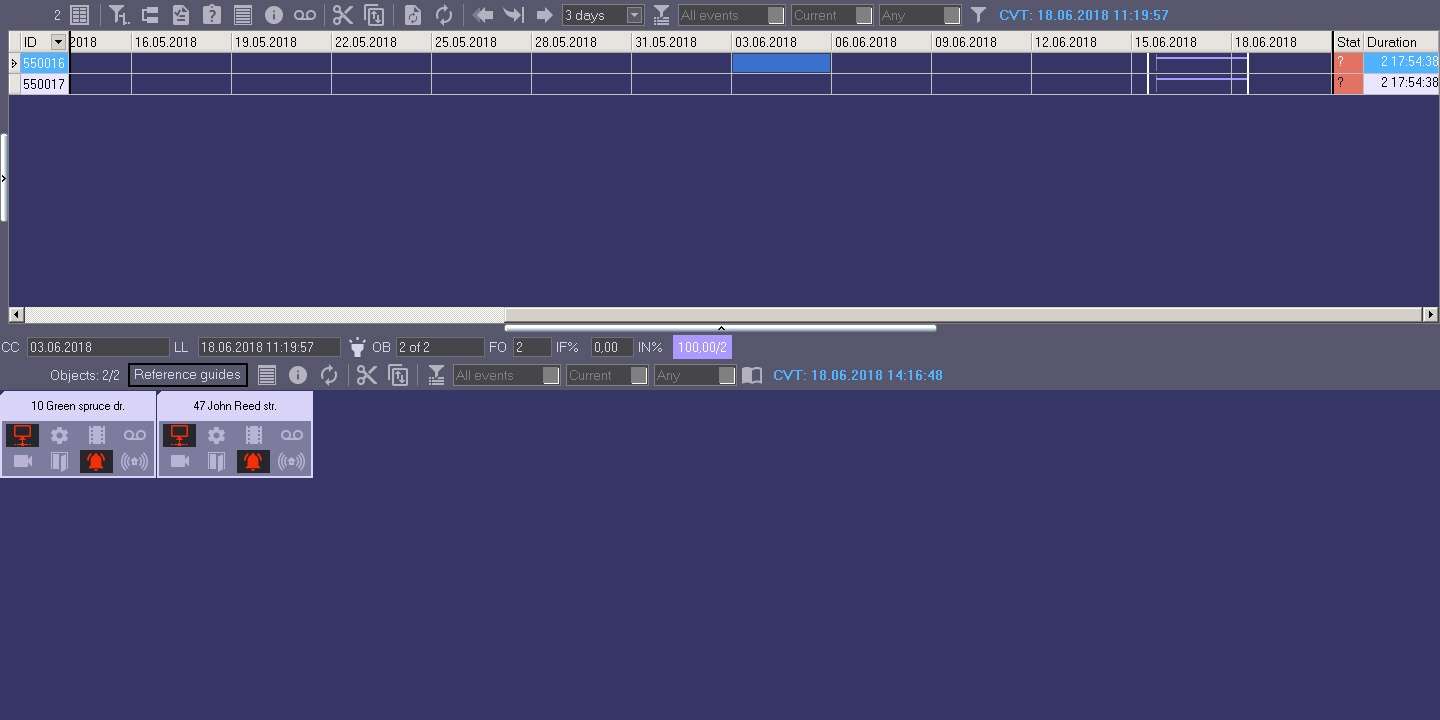

If display is selected under which the ATM Monitoring object is created, the ATM Monitoring window will be displayed.
