To configure visualization of snapshots or video clips received with alarms on sensors (see Operator's Guide, section Viewing video data on alarms), do the following:

Note.

This setting does not affect the reception of the video data by Search in archive interface object.

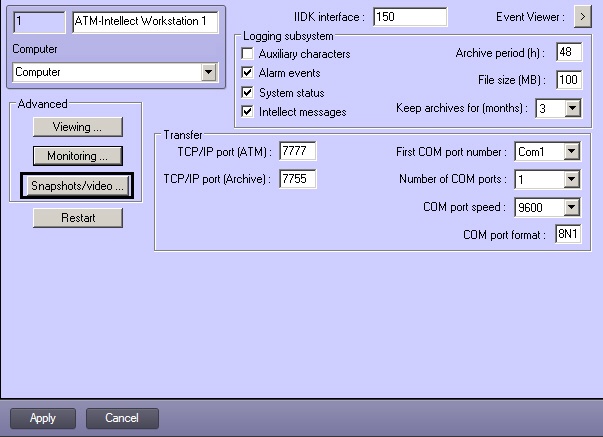

  1. Go to the ATM-Intellect Workstation setting panel.

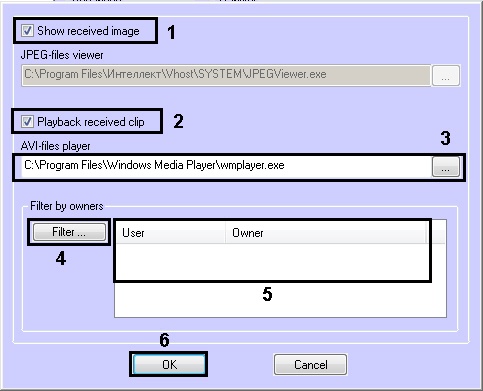

  2. Click the Snapshots/video… button. A dialog box appears.
  3. If you need to open received image set the following parameters:
    1. Set the Show received image checkbox (1).
  4. If you need to open received video clip set the following parameters:
    1. Set the Playback received clip checkbox (2).

    2. Specify the full path to the application used to play received video files (3).

      Note.

      AVI-files player setting is only used for compatibility with ATM Intellect Pro older versions which transmitted avi-files. Newer versions transmit files in the Intellect video archive format, which are always opened with the Axxon Player utility.

  5. If snapshots and videos only from sites belonging to specific owners are to be available for specific users, then set the filter by owners:

    1. Click the Filter… button (8).

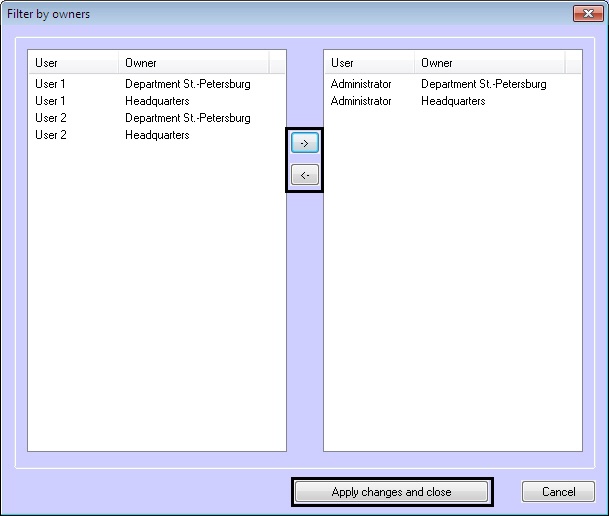

    2. The Filter by owners window appears. The list of available user-owner pairs is on the left, the list of selected ones is on the right.

      Note.

      The list of owners is set on the Control Panel – see Reference information section of Operator's Guide.
      Users and their rights are configured in the Users tab of the System settings dialog box – get information on how to do it in the Intellect Software Package. Administrator’s Guide. The latest version of this document can be found in AxxonSoft documentation repository.
    3. Move the pairs between the lists using the <- and ->buttons.
    4. When the list of user-owner pairs is formed, click the Apply changes and close button.
  6. Selected pairs of users and owners are displayed in the table (9).

  7. Press OK (6).

Configuring the program for cases when snapshots or video clips are received is completed.
