To select the plates' identifying mode by CARMEN-parking module do the following:

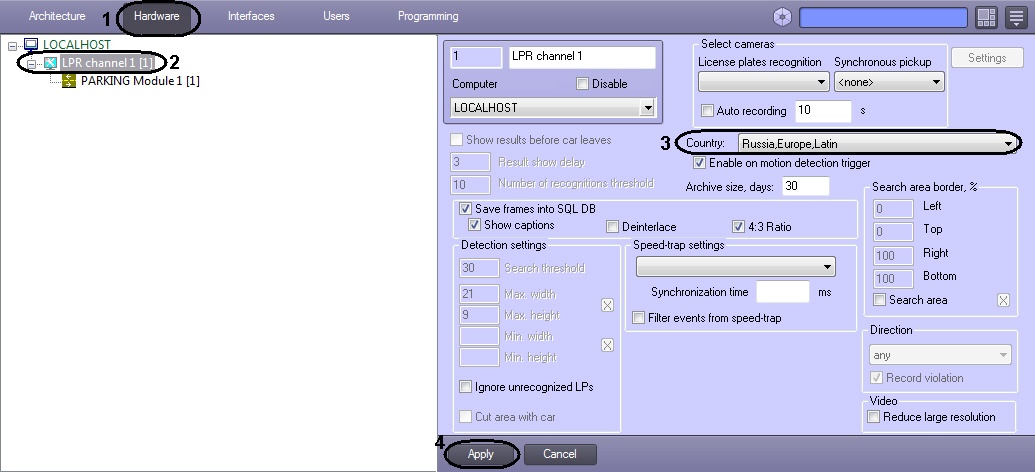

  1. In the System Settings dialog window, open the Hardware tab (1).
  2. Select the LPR channel, corresponding to the activated CARMEN-parking program module in the objects tree on the Hardware tab (see Activating the program module, used for identifying the plates section).The settings panel of the selected object will open on the right side of the window (2).

  3. Select one of the following value from the Country list (3):

    1. Russia, Europe, Latin - for recognizing and identifying the plate's type, corresponding to Russia and all European countries.
    2. Mongolian characters - for recognizing and identifying the plate's type, corresponding to Mongolia.
    3. Thai characters - for recognizing and identifying the plate's type, corresponding to Thailand.
    4. Egypt – for recognizing and identifying the plate's type, corresponding to Egypt.
    5. South America - for recognizing and identifying the plate's type, corresponding to countries of South America, such as Uruguay, Brasil, Chilie, Argentina, Paraguay.
    6. Singapore – for recognizing and identifying the plate's type corresponding to Singapore.
    7. Philippines – for recognizing and identifying the plate's type, corresponding to Philippines.
    8. China - for recognizing and identifying the plate's type, corresponding to China.
    9. Iran (Persian characters) - for recognizing and identifying all Iran characters of the plates.
    10. Iraq - for recognizing and identifying the plate's type corresponding to Iraq.
    11. Pakistan – for recognizing and identifying the plate's type corresponding to Pakistan.
    12. Arabic characters - for recognizing and identifying the plate's type, corresponding to Arabic countries.
    13. USA – for recognizing and identifying the plate's type, corresponding to USA.

    14. Taiwan - for recognizing and identifying the plate's type, corresponding to Taiwan.

    15. Guatemala - for recognizing and identifying the plate's type corresponding to Guatemala.

    16. Morocco – for recognizing and identifying the plate's type, corresponding to Morocco.

      Note.

      The countries recognition functional is realized in the Auto-Intellect PC only for Auto-Uragan, CARMEN-Auto, VIT, AxxonSoft and CARMEN-parking modules.

  4. Click Apply (4).

Selecting the plates' identifying mode by CARMEN-parking module is completed.
