Attention!

Install additional software from the website for correct recognition of the carriages license plates.

Setting up the IntLab-Carriage program module is done in the following way:

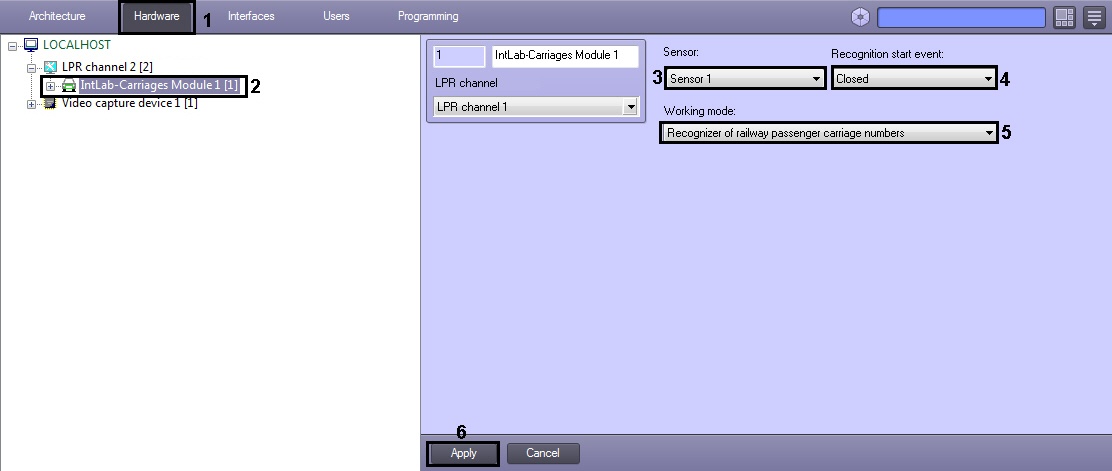

  1. Go to the Hardware tab in the System settings dialog window (1).
    In the objects tree on the Hardware tab select the IntLab-Carriage module object, corresponding to the set IntLab-Carriage program module (2). The settings panel of the selected object will open on the right side of the window.
  2. From the Sensor: drop-down list select the Sensor object on event from which the plate recognition will perform (3).
  3. Select an event on which the plate recognition will start (4).

  4. From the Working mode: drop-down list select the mode of recognition passenger or freight carriage numbers (5).

  5. To save changes click Apply (6).
