Activate one of the following program modules for license plates recognition:

  1. Arena module
  2. CARMEN-Auto module
  3. CARMEN-Parking module
  4. Auto-Uragan module
  5. VIT module
  6. IntLab-Carriages module
  7. ARH-Carriages module
  8. ARH-Containers module
  9. IntelliVision module
  10. Remote recognition.

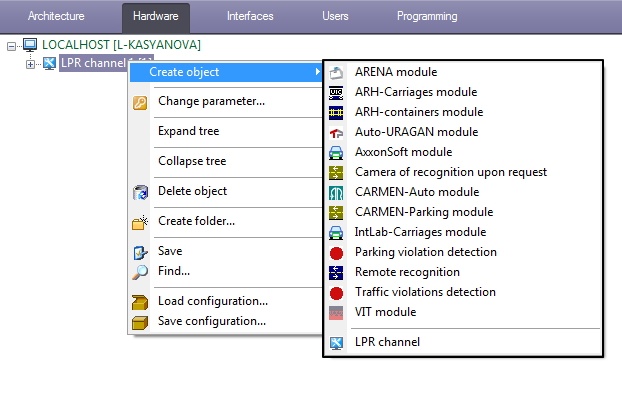

To activate the program module create the same-name object under the LPR channel object.

Note

After creating Arena module, CARMEN-Parking, CARMEN-Auto, Auto-Uragan module, VIT module and IntLab-Carriages objects they are to be configured. There is no need to configure ARH-Containers module, IntelliVision, ARH-Carriages module and Remote recognition objects.


Attention!

After creating or configuring the license plates recognition modules, it is necessary to go to the LPR Channel settings panel and click Apply.


Attention!

Install additional software from the vendor web-site for proper operation of the ARH-Carriages software module. Install additional software form the website for proper operation of the IntLab-Carriages software module.

Attention!

It is possible to activate only one CARMEN-Parking module on one Server if electronic protection key for one channel is used or two CARMEN-Parkingmodules if electronic protection key for two channels is used. Using of several electronic protection keys for CARMEN-Parking on one computer is forbidden!

Select one of the options while configuring the system with three or more CARMEN-Parking program modules:

  1. Activate one or two CARMEN-Parking program modules at a time on several Servers (electronic protection key for each module with specified number of channels is necessary).
  2. Use the CARMEN-Auto program module instead of CARMEN-Parking program module. The number of recognition modules for one Server is restricted only by system capacity for the CARMEN-Auto program module.
