Setting up the events search

On the page:

Events search is set up in the following way:

Select the database, where events should be searched.
Set up the displaying of events search.
Set up the video archive.

Selecting recognizer databases for events search

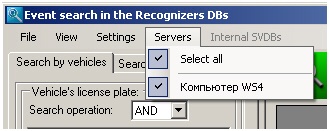

To select recognizer databases for events search, select servers where required LPR databases are. To carry this out select the point Servers -> <Name of the required database> of the main menu in the Event search in the Recognizers DBs window. As a result the server will be marked with icon.

Note.

To select all system servers select the point Servers -> Select all.

There will be search by selected servers.

Note.

Results of search on the server heading will be highlighted by red if some of selected servers is unavailable for search. If all servers are available for search the heading will be highlighted by green.

Event search results setup

Event search results are presented in the table. There is a possibility to choose which table's columns should be displayed and which shouldn't, to add new columns and also edit their displayed names.

To set up the displaying of search results do the following:

Select Settings in the main menu of the Event search in the Recognizers DBs.

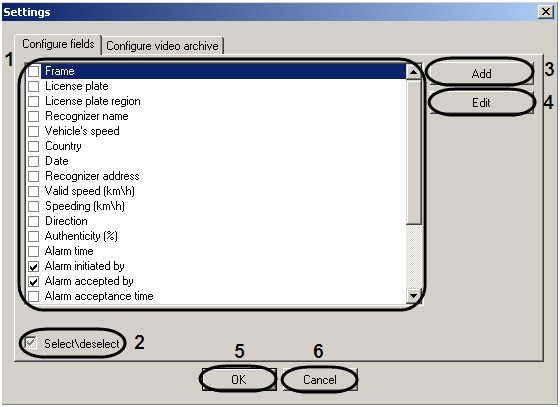

As a result Settings dialog box is displayed. Set up of the event search results displaying is carried out in Configure fields tab.

In the central field of the window (1) set the checkboxes for the columns that should be displayed in event search results table.

Note.

For displaying all the available columns in the search results table set the checkbox Select\deselect (2). If this checkbox isn't set, search results table is not displayed.

Columnname (on default)	Column's content
Frame	Video frame with a vehicle
Vehicle's speed	Vehicle's speed
Number	Identified plate's number
Region number	Region of identified number
Country	Country of the identified number
Detector name	Object name LPR channel, corresponding to Vehicle's detector number
Date	Data of vehicle's identification
Detector address	Number's detector address
Valid speed, km\h	Speed in km\h , that is valid on the road's area/ controlled by number's detector
Overspeed, km\h	Vehicle's overspeeding in km\h
Direction	A check, that the vehicle was moving towards the camera, detecting numbers
Authenticity, %	Plates identification authenticity is given in percent
Alarm time	Time of alarm registration according to the identified number
Alarm detection time	Time of alarm detection by the PC operator of the Auto-Intellect
Delay of alarm acceptance, sec	Time between registering the alarm and its acceptance by operator
Commentary	Commentary , added by the operator to the event with a vehicle
Alarm type	Alarm type(overspeeding or vehicle's identification in the external plates databases)
Alarm processed	A check, that the alarm has been accepted by the operator
External database	A check, that the alarm has been found in the External database
Alarm initiated by	Operator name who initiate the alarm
Alarm accepted by	Operator name who process the alarm
Red-light phase start time	Time of start alarm during which alarm was fixed
Time passed since the red-light phase start	Time period passed since the red-light phase starts until the alarm fixing moment
Category	Vehicle category identified by license plate

To add a new column to the event search results table do the following:
3.1 Click Add (3). As the result Configure fields dialog box opens.

3.2 In the Field name in the DB enter the column's name in the connected recognizer's database, which content is required to be displayed in the event search results table (1).
3.3 In the Field name in the interface enter the name of this column in the event search results table (2).
3.4 Click Save to save the applied changes and close Configure fields dialog window (3).
Note.
Click Cancel to close this window without saving any changes (4).

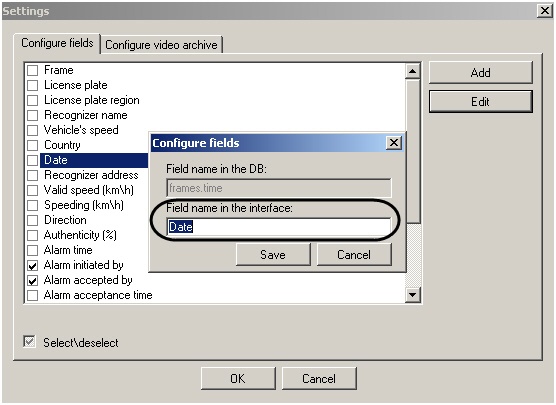

To edit column's name in the event search results table do the following:
4.1 In the Available fields group select the column, the name of which has to be changed (1).
4.2 Click Edit (4).
4.3 As a result Configure fields dialog box with blocked Field name in the interface field is displayed.

4.4 Change the columns name in a required way in the event search results table and save the changes (see steps 4.3-4.4).
Click OK to save the changes and close the Displayed fields selection dialog window (5).

Note.

Click Cancel to close this window without saving any changes (6).

Setting up the event search results is completed.

Set up the video archive

Video recordings of events are displayed in video archive. To set up the video recordings playback do the following:

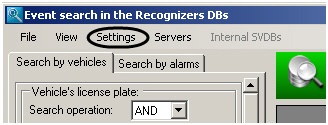

Select Settings in the main menu of the Event search in Recognizers DBs.

As a result Settings dialog box is displayed.

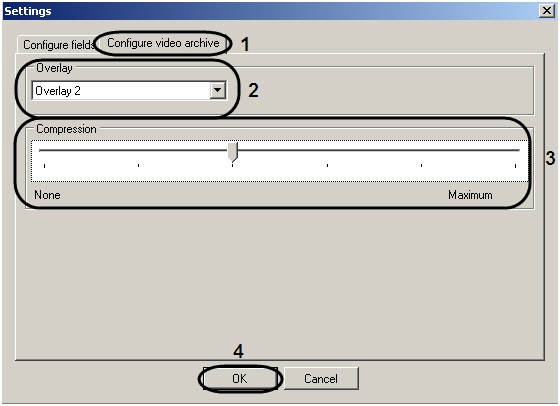

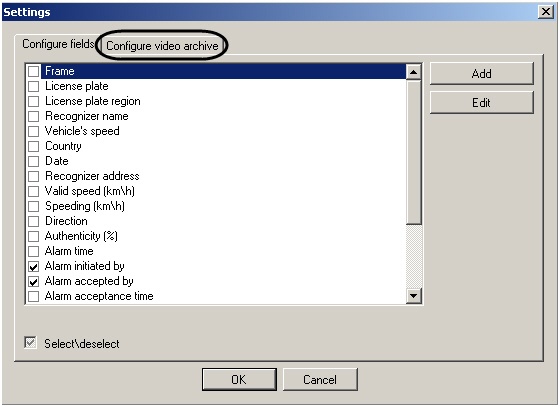

Go to Configure video archive tab (1).

Select Overlay mode in the Overlay dropdown list (2).

Note.

Overlay is used to process the video using the video card and Direct X libraries, before it is displayed. Overlay allows to improve the image due to optimization of the pixel color settings. At the same time, the CPU's load reduces as the video is processed with the resources from the video capture card.

The overlay modes are presented in the table.

Overlay mode	Description
No	Videos from video cameras are not processed by video card
Overlay 1	Videos from video cameras are processed as one stream
Overlay 2 (set on default)	Videos from video cameras are processed independently of one another

In Compression field set the cursor in position that determines video compression degree (3). Minimal compression value is None – maximal video size, best quality. Maximal compression value is Maximum – minimal video size, worst quality.
To save changes click ОК (4).

The setting of the events video recordings playback is completed.
