If the frame sign recording to the LP numbers database is activated, digital sign will be automatically assigned to every recorded LP number.

There is a possibility to change digital sign parameters.

Note.

This setting is relevant only if the Auto-Uragan or VIT program modules are used.

To set up the parameters of digital frame sign do the following:

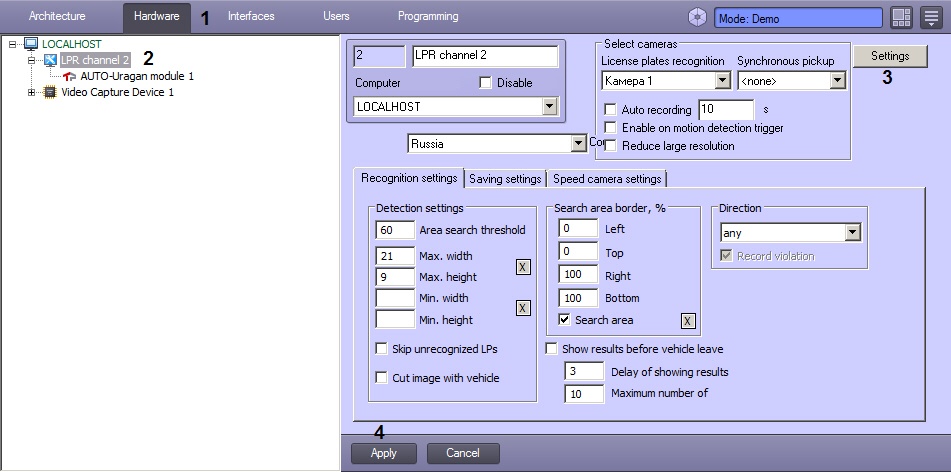

  1. In the System Settings dialog window, open the Hardware tab (1).
  2. Select the LPR channel in the objects tree on the Hardware tab (2). The settings panel of the selected object will open on the right side of the window.
  3. Click Settings button (3).
  4. Frame sign parameters dialog window will be displayed in result.

  5. Add one or several camera installation and speed detector parameters together with LPR channel to a frame sign. Put a tick in the Enabled checkboxes for necessary parameters in the SD installation height group and then enter in the field or select the values of corresponding parameters from the list.

    №

    Parameter

    Parameter description

    1

    Installation height of speed detector

    Speed detector installation height in meters.

    2

    Shooting angle

    Angle, made by an camera's objective optical axis and camera's vertical support, in degrees.

    3

    Angle of setting

    Projection to the horizontal plate of the angle, made by speed detector's normal line and vehicle direction trajectory, in degrees

    4

    Installation type

    Installation type of speed detector

    5

    Lane number

    Lane number, controlled by speed detector

    6

    GPS Coordinates

    GPS coordinates of speed detector

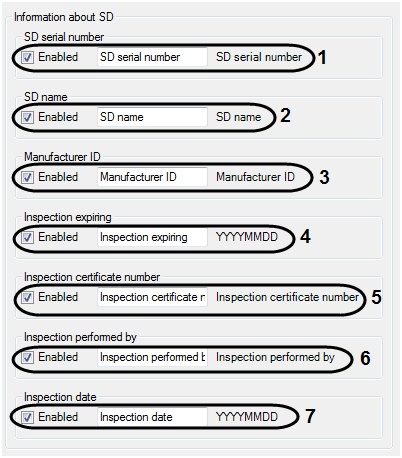

  6. Add one or several speed detector parameters to the frame sign. Put a tick in the Enabled checkboxes for necessary parameters in the Information about SD group and then enter in the field or select the values of corresponding parameters from the list.

    №

    Parameter

    Parameter description

    1

    Vehicle's serial number

    Vehicle's serial number of speed detector

    2

    Vehicle's name

    Speed detector's name

    3

    Manufacturer identifier

    Speed detector's manufacturer identifier

    4

    Inspection expiring

    Date in format «YYYY.MM.DD»,till which speed detector's metrological check is valid

    5

    Number of inspection certificate

    Number of inspection certificate about the last speed detector's metrological check

    6

    Authority, who has performed the inspection

    Authority, who has performed the last speed detector's metrological check

    7

    Inspection date

    Date in format «YYYY.MM.DD» of the last speed detector's metrological check

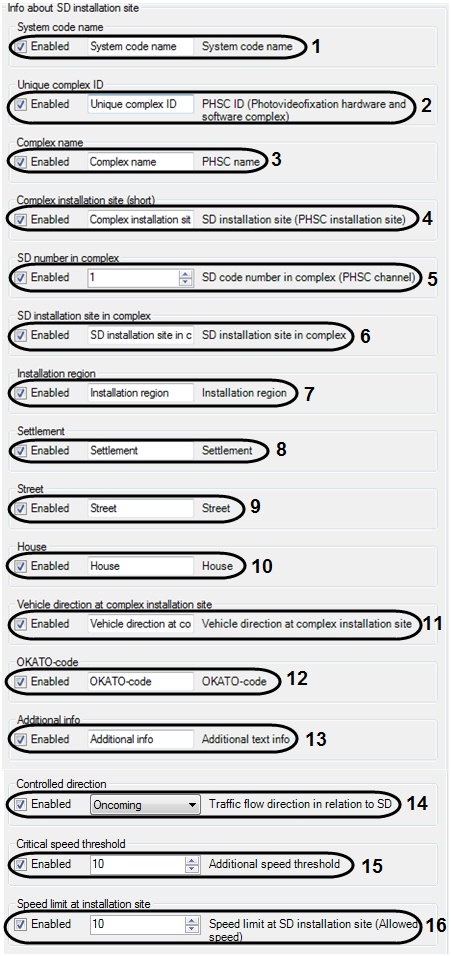

  7. Add one or several speed detector parameters to the frame sign. Put a tick in the Enabled checkboxes for necessary parameters in the Info about SD installation site and then enter in the field or select the values of corresponding parameters from the list.

    №

    Parameter

    Parameter description

    1

    System code-name

    Photo-video fixation system code-name which contains functioning speed detector

    2

    Unique complex identifier

    Unique complex identifier

    3

    Complex name

    Complex name

    4

    Complex site(short)

    Short description of complex site

    5

    Speed detector number in the complex

    Speed detector number in the complex (channel number)

    6

    Speed detector site in the complex

    Description of speed detector site in the complex

    7

    Installation region

    Region where speed detector is installed

    8

    Settlement

    Settlement where speed detector is installed

    9

    Street

    Street where speed detector is installed

    10

    House

    House near which speed detector is installed

    11

    Vehicle's direction at the complex site

    Vehicle's direction at the complex site

    12

    ОКАТО code

    Speed detector site code in All-Russian classifier of administrative territorial division

    13

    Additional information

    Additional information about speed detector

    14

    Controlled direction

    Vehicle's direction in respect of speed detector that controls it

    15

    Critical speed level

    Vehicle's speed that is considered to be critical( for example, alarm is being generated in the process)

    16

    Speed restriction at the site

    Allowed vehicle' speed at the road side , controlled by the speed detector

  8. Click OK to save the changes and close Frame sign parameters window.

    Note.

    Click  button to close the window without applied changes.

    Setting up the digital frame sign is completed.
