To select the External Plates DBs that should be used as the Active tracking databases, do the following:

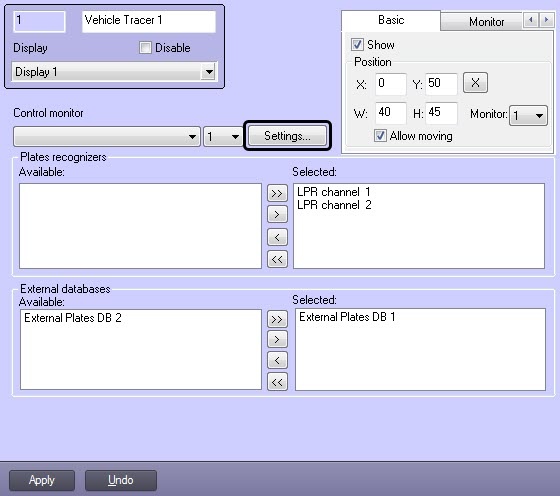

  1. Go to the Vehicle Tracer settings panel.
  2. Click the Settings button.

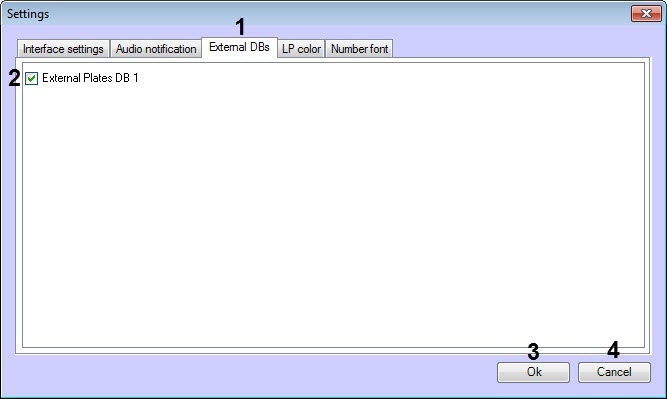

  3. Go to the External DBs tab in the opened dialog window (1).

  4. Set the checkboxes next to those External Plates DB that should be used as the Active tracking databases (2).

    Note

    To select the external databases as the Active tracking databases, it's required to select the local database with specified Catch_DB table and Plate field when configuring the External Plates databases (for the detailed information about External Plates databases configuring, see Connecting the external database).

  5. Click the OK button to save the changes and close the Settings dialog window (3).

    Note

    Click the Cancel button to close the Settings dialog window without saving the changes (4).

  6. Click the Apply button to save the changes on the Vehicle Tracer settings panel.

Selecting the External Plates DBs as the Active tracking databases is completed.
