To set up the Alarm window position, do the following:

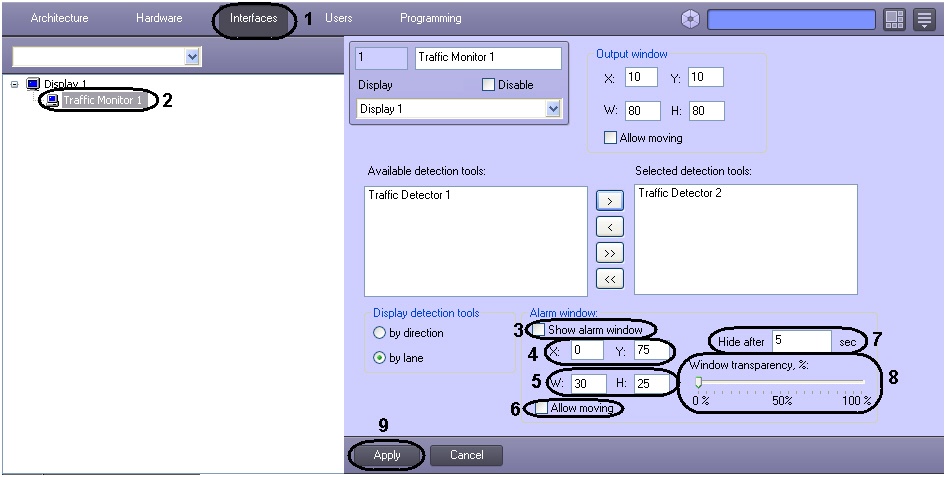

  1. Open the Interfaces tab in the System Settings window (1).
  2. Select the Traffic Monitor object in the objects tree (2).
  3. By default, the Alarm window is not displayed. To open the Alarm window, set the Show alarm window checkbox (3).
  4. To change the window position, enter the values in the X and Y fields (4). The values must correspond to the coordinates of the upper left corner of the window as a percentage of the screen width and height, respectively.
  5. To change the window size, enter its width in the W field and its height in the H field as a percentage of the screen dimensions (5).
  6. By default, the Alarm window cannot be moved around the screen. To enable window movement, set the Allow moving checkbox (6).
  7. In the Hide after field, enter the number of seconds that the window will be displayed until it is closed (7).
  8. Set the Alarm window transparency level using the Window transparency, % slider. By default, the Alarm window is displayed opaque (minimum transparency). The transparency level increases (in percent) when the slider is moved to the right (8).
  9. Click the Apply button (9).

The Alarm window position is now set.

Note

If the text in the Alarm window overlaps the images, enlarge the window (see step 5) to the size when the text and images are displayed correctly.
