The Traffic Monitor position in the screen is specified using the coordinates of its upper left corner, its width and height, and the possibility to move the window around the screen using the mouse.

To set the Traffic Monitor window position, do the following:

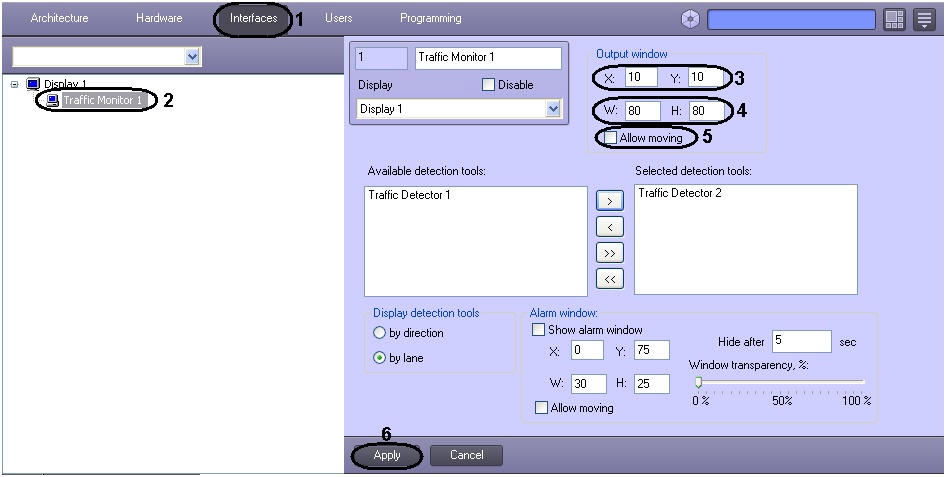

  1. Open the Interfaces tab in the System Settings window (1).
  2. Select the Traffic Monitor object in the objects tree (2).
  3. By default, the Traffic Monitor window is located in the middle of the screen, with the following upper left corner coordinates: X = 10, Y = 10. To change its position, enter the coordinates in the X and Y fields, as a percentage of the screen width and height, respectively (3).
  4. By default, the Traffic Monitor window takes 64% screen space (80% of the width and height of the screen). To change the window size, enter the values in the W and H fields, as a percentage of the screen width and height, respectively (4).
  5. By default, the Traffic Monitor window cannot be freely moved around the screen. To allow free movement of the window, set the Allow moving checkbox (5).
  6. Click the Apply button (6).

The Traffic Monitor window position and dimensions are now set.
