To select the traffic information display option, do the following:

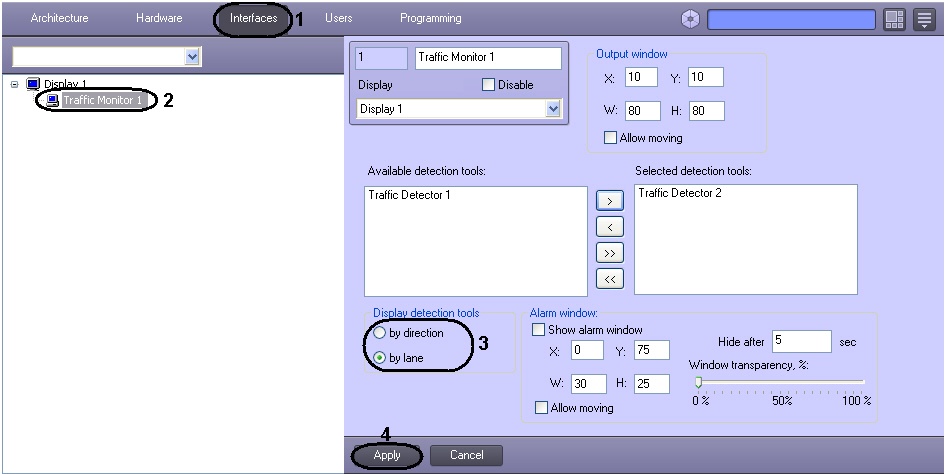

  1. Open the Interfaces tab in the System Settings window (1).
  2. Select the Traffic Monitor object in the objects tree (2).
  3. Set one of the radio buttons in the Display detection tools group—by direction, or by lane (3).
  4. Click the Apply button to save the settings (4).

The information display option is now selected.
