Documentation for Axxon Next 3.0.1. Documentation for other versions of Axxon Next is [available too].

You can add cameras to the map in one of two ways:

  1. By using the viewing tile context menu.
  2. By dragging a video camera icon from the video camera panel to the map.

To add a video camera to the map by using the viewing tile context menu:

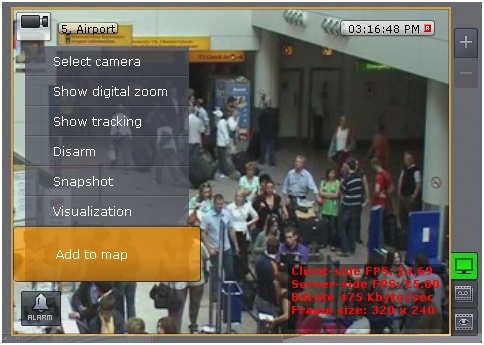

  1. In the viewing tile context menu, select Add to map.
  2. Drag the video camera's icon to the place on the map that represents the camera's actual location at the site (1).
  3. On the map, use the corner nodes to adjust the video camera's field of view to match the actual situation at the site (2).
  4. To save changes and exit editing mode, click the Apply button (3).

The video camera has now been added.

There is another way of adding a video camera to the map:

  1. In the video camera panel, left-click a video camera's icon. Holding down the mouse, drag it on to the map.
  2. Repeat steps 2 through 4 of the instructions for adding a video camera to the map by using the viewing tile context menu.

The video camera has now been added.
