Documentation for Axxon Next 3.0.1. Documentation for other versions of Axxon Next is [available too].

To set the general parameters of video detection tools, you must perform the following steps:

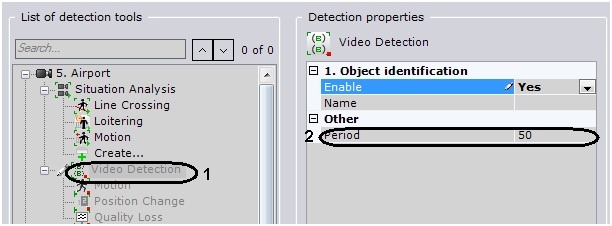

  1. In the Detection Tools list, highlight a Video Detection Tools object (1) which offers a means of analyzing the video image from the desired video camera.
  2. In the Period field (2) enter the time in milliseconds after which the next video image frame will be processed. This value should be in the range [0, 65535]. If the value is 0, each frame of the video image is processed.
  3. Click the Apply button.

Setting the general parameters of the video detection tools is now complete.
