The Alarm Events Filter

The Events filter component is used to select the type alarm events to be displayed on the archive navigation panel.

To select a type of alarm events, you must perform the following steps:

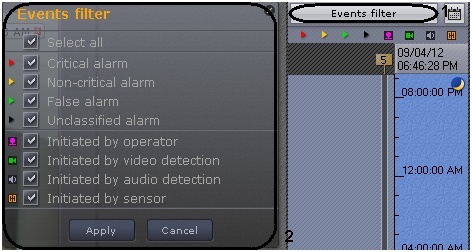

1. Click the Events filter button (1). The Events filter window will then be displayed (2).

2. Select the check boxes for the types of alarms which should be displayed on the archive navigation panel, according to their status:

   1. Critical alarm
   2. Non-critical alarm
   3. False alarm
   4. Unclassified alarm
3. Select the check boxes for the types of alarms which should be displayed on the archive navigation panel, according to the cause of their initiation:

   1. Initiated by operator
   2. Initiated by video detection tool (basic, situation analysis, or embedded)
   3. Initiated by audio detection tool (basic, situation analysis, or embedded)
   4. Initiated by sensor

   Note.

   By default, all check boxes are already selected.
4. Click the Apply button.

Note.

To close the window without saving changes, click Cancel or .

Selection of alarm events is now complete.

Events of the selected type will be displayed on the timeline (see the section titled The Timeline) and in the alarm events list (see the section titled The alarms List).
