If a relay is physically connected to the system independently of a video camera, then you must specify the video camera to which it will be linked in the settings of the given relay. When you do this, the Relay object will appear under the specified Camera object in the object tree.

Note

This setting is relevant only for relays connected to IP servers. The relay and the video camera to which it is to be linked must be connected to the same IP server

If the relay is embedded in a video camera or physically connected to it, then its corresponding object will be automatically displayed in the objects tree as a child of that video camera.
To configure a Relay object, perform the following:

  1. Select a Relay object in the objects tree.

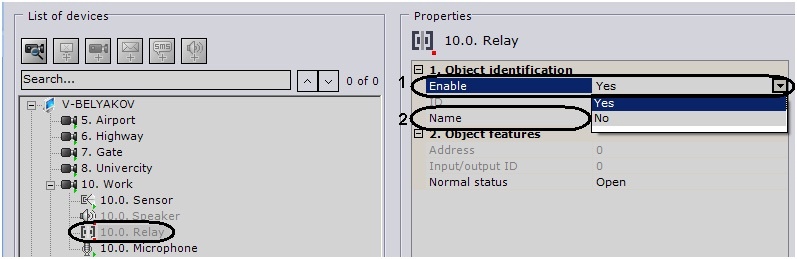

  2. Enable the device (1).
  3. Enter the name of the relay (2).

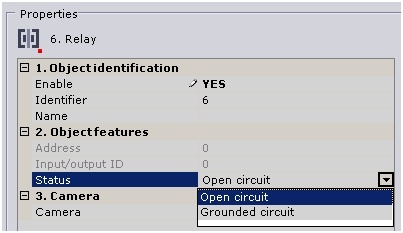

  4. Set the status to which the relay will be set when no alarm is present.
  5. Click the Apply button.

The relay will then be switched to its assigned work mode.

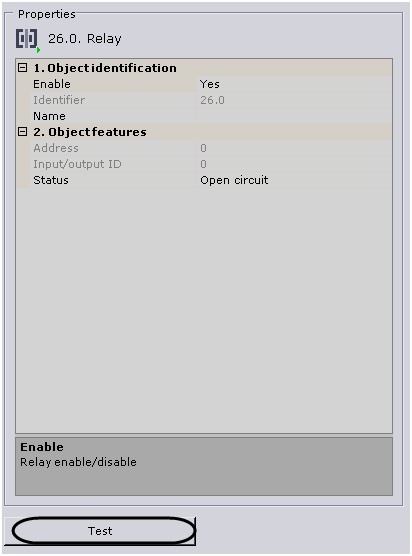

To check the functioning of the relay, click the Test button. If the relay is configured correctly, its status will briefly change.
