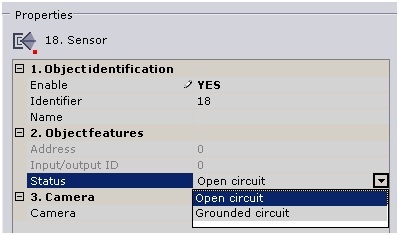

If a sensor is physically connected to the system independently of a video camera, then you must specify the video camera to which it will be linked in the settings of the given sensor. When you do this, the Sensor object will appear under the specified Camera object in the object tree.

Note

This setting is used to link alarms initiated by the triggering of a sensor to a video camera

Note

 This setting is relevant only for sensors connected to IP servers. The sensor and the video camera to which it is to be linked must be connected to the same IP server


If the sensor is embedded in a video camera or physically connected to it, then its corresponding object will be automatically displayed in the objects tree as a child of that particular video camera.

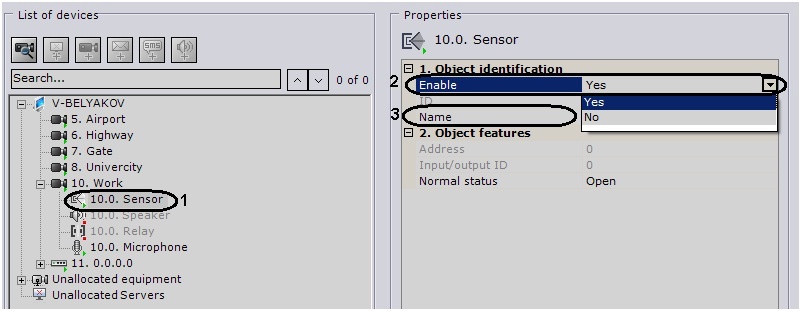

To configure a Sensor object, perform the following:

  1. Select the Sensor object in the objects tree (1).
  2. Enable the device (2).
  3. Enter the name of the sensor (3).
  4. Set the status to which the sensor will be set when no alarm is present.
  5. Click the Apply button.

The sensor will then be switched to its assigned work mode.
The current status of the sensor is displayed in the Sensor information group.

Play corresponding video
