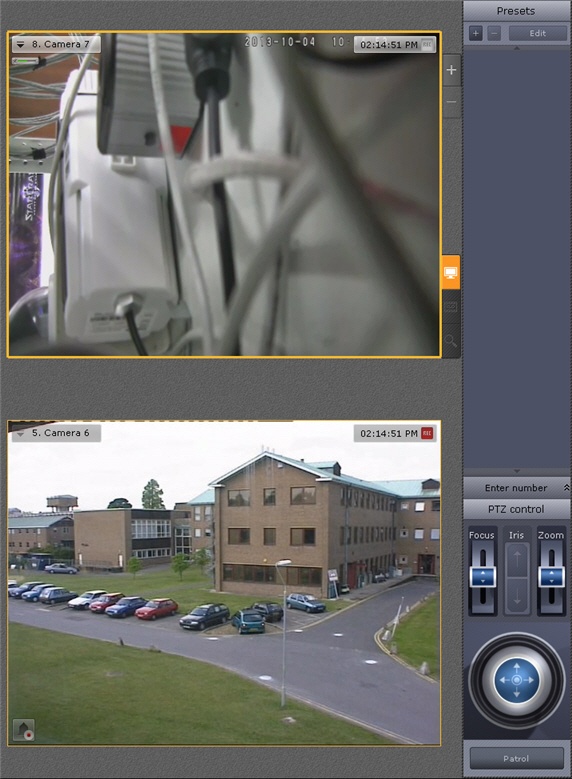

The PTZ control panel is displayed automatically in the right-hand part of the screen when the viewing tile of a PTZ camera is activated in Live Video mode.

Info
titleNote
The PTZ control panel is displayed only if the  Telemetry  object for the particular video camera is enabled (see the section titled The Telemetry Object).



The PTZ control panel is used for the following functions:

  1. Controlling PTZ video cameras.
  2. Setting and switching to camera presets.
  3.  Launching/stopping patrolling.

The PTZ control panel includes the following interface elements:

  1. Presets list
  2. Dialer

  3. PTZ controls for iris, focus, and optical zoom

    Info
    titleNote
    If a camera does not support a function, the controls for this function cannot be accessed

  4. Virtual 3D joystick

    Info
    titleNote

    The type of virtual 3D joystick and adjustment scale depend on the type of PTZ cameras: discrete or continuous control of Pan, Tilt, Zoom, Focus, and Iris.

  5. Patrol button
Info
titleNote
Use of the dialer, PTZ controls, joystick, and patrol button is described in the section Controlling a PTZ Camera.
