The Auto-Intellect software module supports the wide list of Radar type devices. Selecting of connected device is performed via Speed traps server object corresponding to the configured Radar software.

To select the model of Radar device do the following:

...

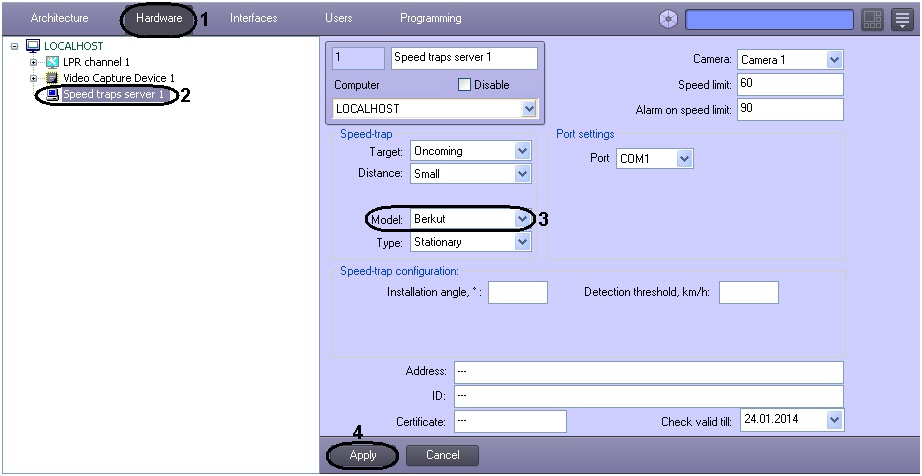

1. Open the Hardware tab in the System Settings window (Fig. 7.3—5, 1).
2. In the object tree on the left side of the Hardware tab, select the Speed-trap server object representing the Radar module to be set up. The settings panel of the selected object will open on the right side of the window (Fig. 7.3—5, 2).


...

1. Image Added
2. Specify the module model of Radar device from the Model list of supported devices (Fig. 7.3—5, 3).
3. Click Apply (Fig. 7.3—5, 4).

The process of selecting the module of Radar devise is completed.
