Configuring the Unicard reader is performed on the settings panel of the the Unicard Reader object created on the basis of the the Unicard ACP object on the Hardware tab of the System settings dialog window.

Image RemovedImage Added

To configure the Unicard reader, do the following:

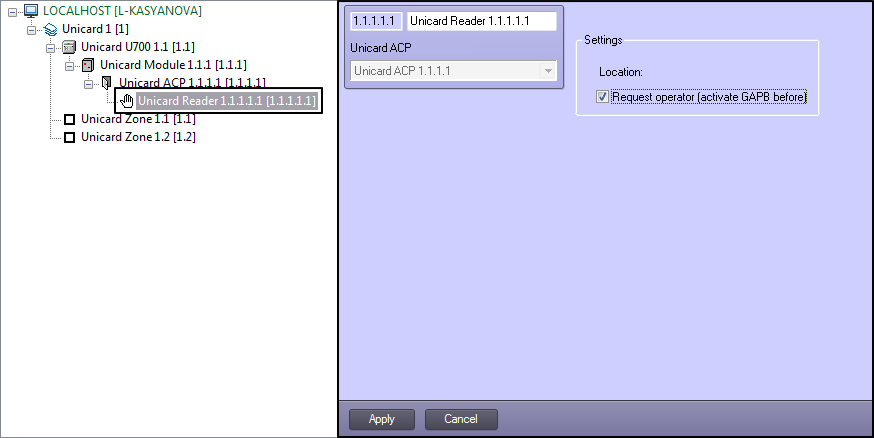

1. Go to the settings panel of the Unicard Reader object.
   Image RemovedImage Added

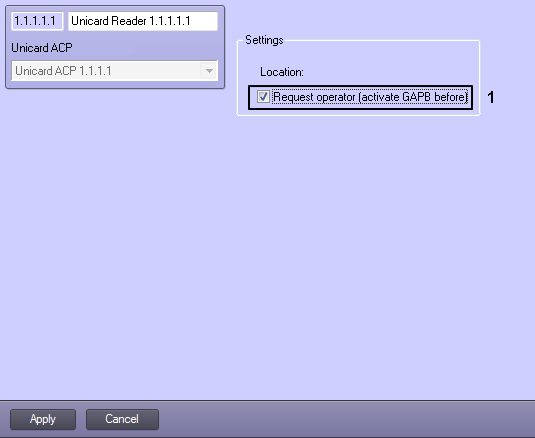

2. From the Region out: drop-down list select the Region object located in the site of entry through the reader (1).

3. Check the Request operator box if the data supplied to the reader must be confirmed by the operator.

   Info
   title Примечание
   In order for this functionality to work properly, enable the global antipassback first by checking the GLOB_APB_ENABLE box in the settings of the Unicard controller (see Configuring the Unicard controller

   From the Region in: drop-down list select the Region object located in the site of exit through the reader (2

   ).

4. Click the Apply button to save changes.

...
