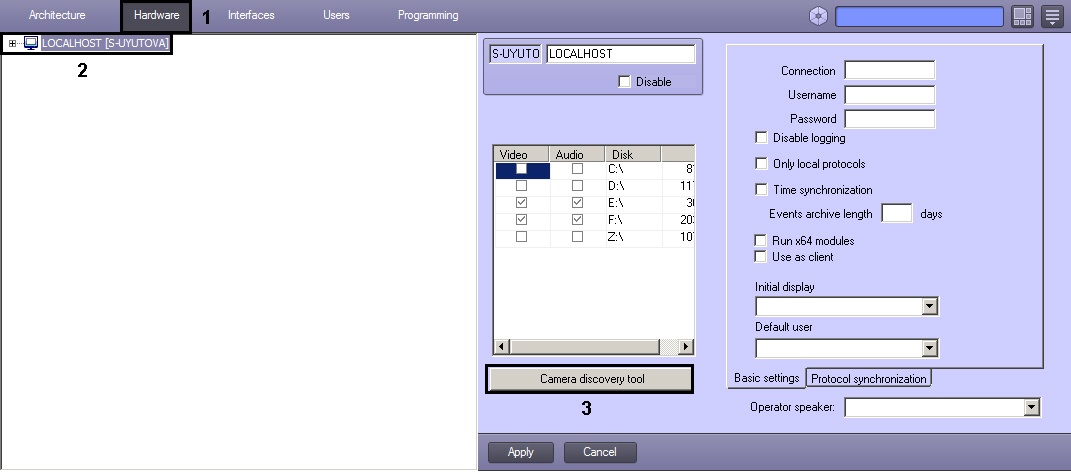

1. Go to the Hardware tab in the System settings dialog box (1).

2. In the object tree select the Camera object corresponding to the configured Server (2).
3. Click Camera discovery tool on the setting panel of the selected object (3).

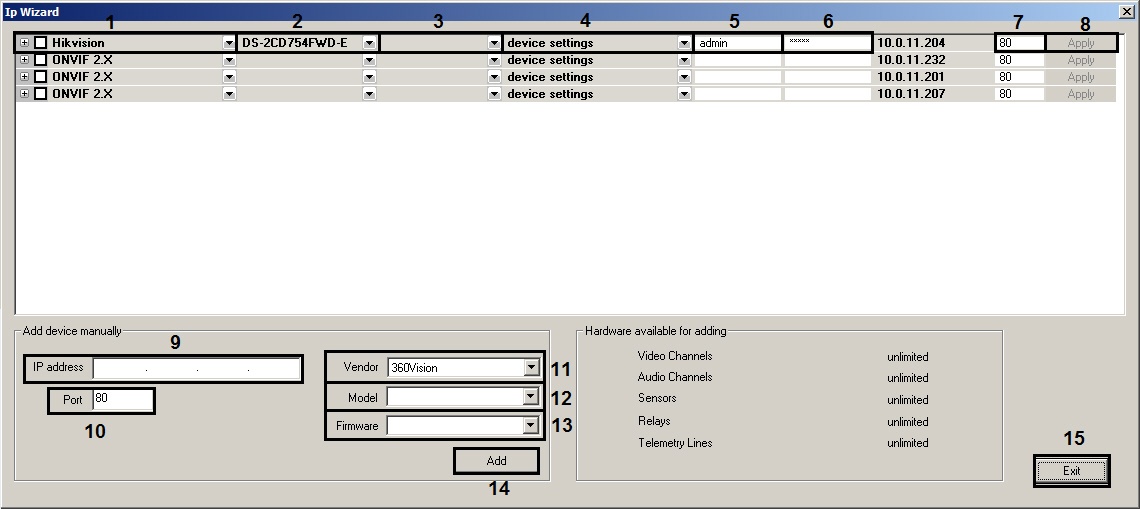

   As a result the IP Wizard window is displayed. Found IP devices are displayed on the top of the window.

   Info
   title Note
   The IP Wizard window can also be displayed by selecting the Camera discovery tool item in the context menu of the Computer object.




4. Check up the vendor (1) and model (2) for found IP device. Make changes if necessary by opening the corresponding dropdown list and selecting required value.
5. From the drop-down list (3) select settings which should be installed on the IP-device while its adding to the device tree: leave installed device settings or apply video server settings.
6. Check up the TCP/IP port (6). Specify the required value in the field.
7. Specify the login (4) and password (5) to connect IP device. Login and password are specified in the documentation for connected network device.

8. Select the objects that are to be created under IP device.

   Info
   title Note
   The number of objects that can be created under IP device is displayed automatically in the Hardware available for adding table.



   1. Open the dropdown list of supported IP device by clicking the  button.

      Correspondence of object names in IP Wizard to the branches of object tree is in table.

      Name of object in IP Wizard	Branch of object tree in INTELLECT™
      Video channel	The Video Capture Device object  -> The Camera object
      Audio input	The Audio card object -> The Microphone object
      Contact	The Video Capture Device object - > The Sensor object
      Executive device	The Video Capture Device object -> The Relay object
      Telemetry line	The Telemetry controller object -> The PTZ device object
      Audio output	The Playback card object -> The Loudspeaker object

   2. Set checkboxes for objects that are to be created.

      Info
      title Note
      To create/delete all objects set the checkbox checked/unchecked next to the vendor of IP device.

9. Click the Apply button (7).
   The selected objects are created automatically in the Hardware object tree.


   Info
   title Note
   When this manual was written, audio input of DS-4016HCI video capture card had not been integrated with INTELLECT yet. So, when this card is added using the Camera discovery tool, the Audio card and Microphone objects are not created.

10. Repeat steps 4-8 for each IP device that is to be created in the system.

    Info
    title Note
    To delete the IP-device from the IP Wizard window right – click the corresponding line in the table and select the Delete camera <IP address> from the list item. To delete the IP-device object or objects created under it from the hardware tree by means of the IP Wizard, set the checkboxes unchecked for corresponding objects and click the Apply button.

11. If the IP device has not been found, then add it manually.

...
