Configure Everfocus EKB-200 EverFocus EKB200 telemetry control panel in Intellect as follows:

1. Create the Telemetry control panelController object.

   Info
   title Note.
   You can leave default settings of the Telemetry control panelController object.

2. Create the Control panel object.

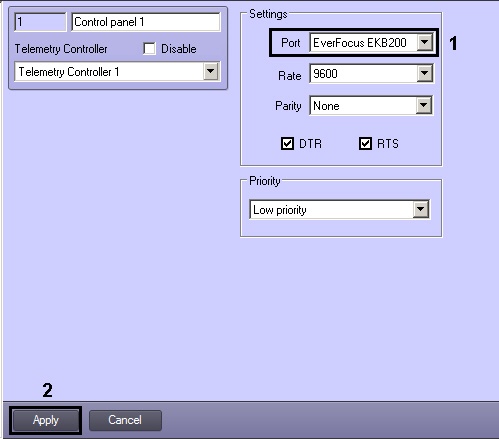

3. Select Everfocus EKB-200 EverFocus EKB200 in the Port field (1).



   Info
   title Note.
   As the control panel is connected to the computer via USB, then you can leave default Speed Rate, Parity, DTR and RTS settings.

4. To apply the changes settings click the Apply button (2).

Even if there are no PTZ cameras in the system, there will be events (when buttons are pressed and the joystick position is changed) from the Control panel object corresponding to EverFocus EKB200 telemetry control panel.

...

These events will be displayed in the event log and they can be used in scripts and macros (see also TELEMETRY_EXT section in Programming Guide).

EverFocus EKB200 Everfocus EKB-200 telemetry control panel is now configured.
