There is an opportunity of integrated selection and editing of cameras’ parameters for copying the video archive to the Long-term Backup archive.

Integrated selection can be performed in the following way:

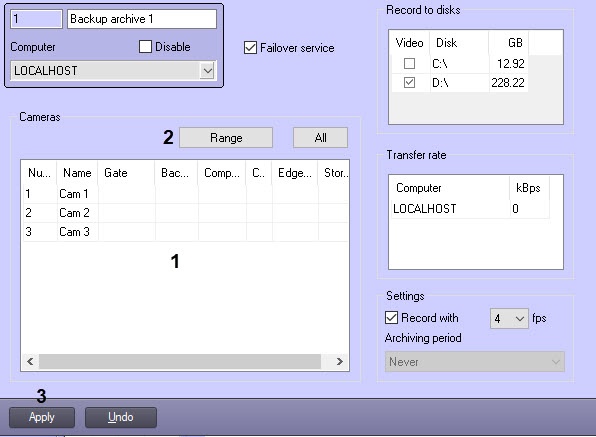

1. Go to the settings panel for the Long-term Backup archive system object, click the Range button in the Cameras group (1).

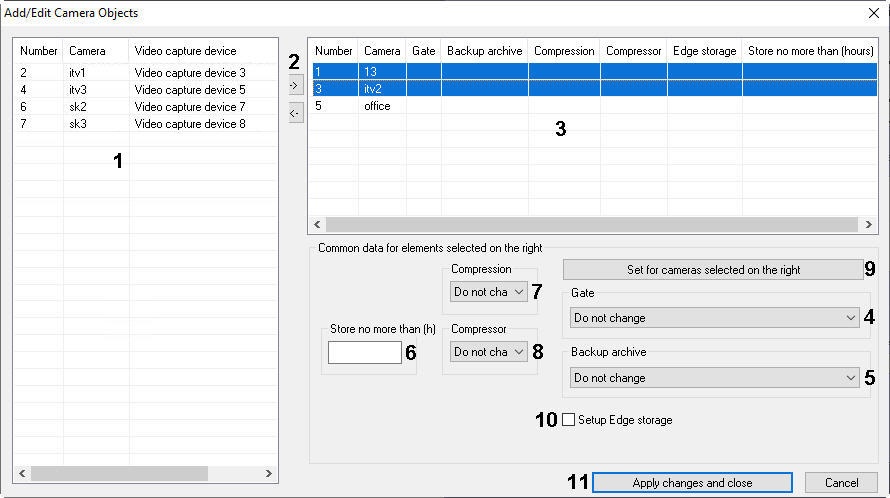

2. As a result the Add/Edit Camera Objects dialog box opens.

3. Select the required cameras in the left list of the Add/Edit Camera Objects box (1).

4. Move the selected cameras to the right list by clicking the  button (2).

   Info
   title Note.
   The list on the right is the list of cameras selected for copying the video archive to the Long-term Backup archive. The  button is used for reverse action that is for moving the selected video cameras from the right list to the left one (2).




5. As a result the selected cameras are displayed in the right list of the Add/Edit Camera Object box (3).

6. If it is necessary in the right list select the names of required cameras for complex editing their parameters (3).

   Note
   title Attention!
   For all the selected cameras the same parameters will be set.




7. If a video archive from the selected camera is to be received via the Videogate object, then select the name of this object from the Gate drop-down list (4).

   Info
   title Note.
   The Gate and Long-term Backup archive settings belong to the Common data for the elements selected in the list on the right group.




8. If a video archive from the selected camera is to be transmitted from another Long-term Backup archive object, select the name of this object in the Long-term Backup archive drop-down list (5).
9. To save the parameters, click the Set for the cameras selected in the list on the right button (6).
10. As a result the set parameters are shown in the list on the right of the Add/Edit Camera Objects box (3).
11. Repeat steps 6-9 for complex editing of all the required cameras.
12. To save the changes and close the Add/Edit Camera Objects box, click the Apply changes and close button (7).
13. Camera settings are shown in the Cameras table on the settings panel of the Long-term Backup archive object (2).
14. To save all the changes, click the Apply button (3).

...
