There is a Transfer rate table in the setting panel for the Long-term Backup archive system object. This table limits the bandwidth over LAN for every Server transferring archive to the Long-term Backup archive module.

To set the bandwidth parameters, do the following:

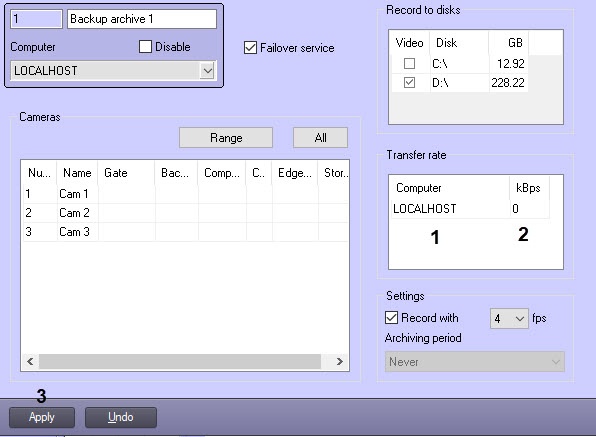

  1. Go to the settings panel for the Long-term Backup archive system object. In the Transfer rate table there are computers transferring video data to the Long-term Backup archive (1). The list of computers is determined by cameras list.
  2. In the kBps column for each of the computers specify the values of maximum bandwidth for transmitting video over LAN for the computer (2).
  3. To save the changes, click the Apply button and restart INTELLECT™ software (3).

...
