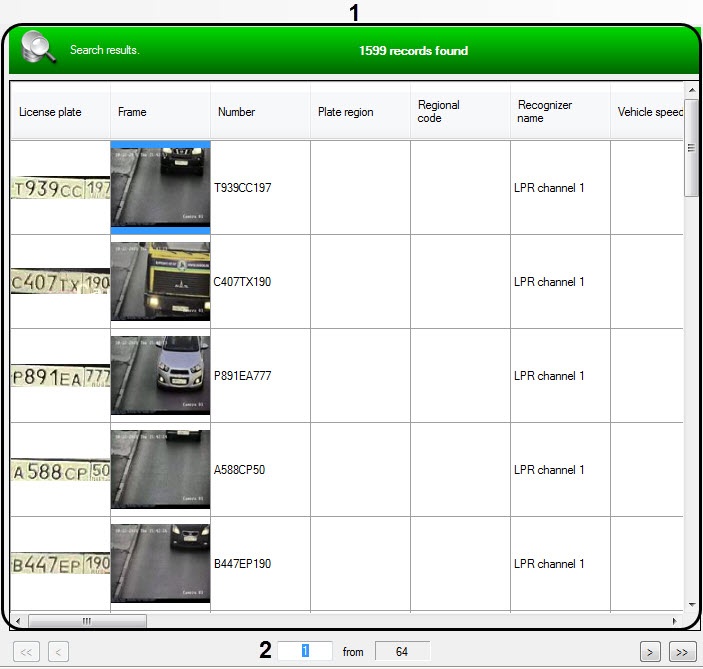

Columns of Search results table (1) are displayed in accordance to with the settings, given in the Selection of displayed fields dialog window (see Setting up Configuring the events search section).

Description of the column's columns content is given in the same section of the Guide.

For result's navigation To navigate in the results table there are used , use the following interface elements:

  1. button  – transfer go to the first page of the table;
  2. button  – transfer go to the previous page of the table;
  3. field  – transfer go to the required page of the table;
  4. field  - number of pages in the table;
  5. button  – transfer go to the next page of the table;
  6. button  – transfer go to the last page of the table.
Info
titleNote.

To transfer go to the required page one should , enter its number in the field 2 (2), and then click Enter on the keyboard.

 To print the Event search results or/and export them to one of the most commonly used formats select the point File of click File → Print in the main menu in of the window Event search in the Recognizers DBs.

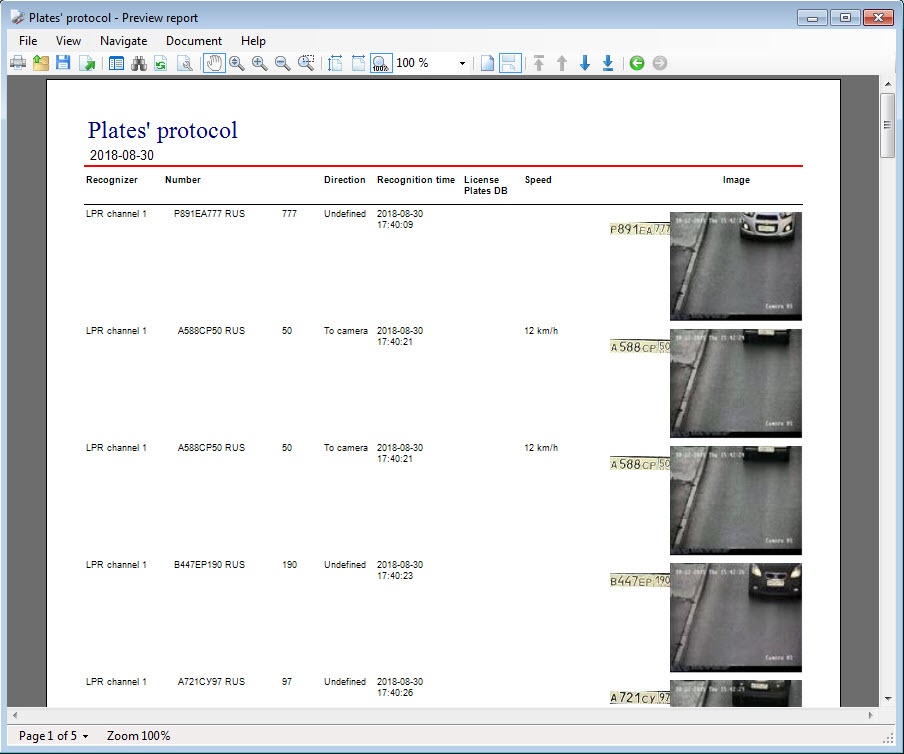

As a result the search results report preview report program will launch. In the window of this program there will be displayed License plates protocol.

If there are more than 1000 entries in the search results the following message will be displayed before the preview report program launch.

...

Perform the necessary operations with a report and then quit the program Preview report by following the points of the main menu clicking File -> Exit in the main menu or by clicking the button  (see step 4 in the section Printing and exporting the vehicle data about the vehicle).

The data about violations are exported into JPG files. The file contains the camera frame, the synchronous camera frame and meta-information in the Arena module format. This functionality is required for integration with the TRIS. The exported file can be opened in any program designed to view JPG files, but only the frame received from the main camera will be displayed.

...

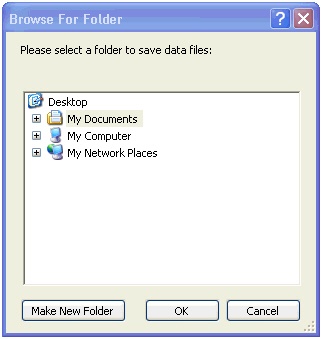

In the opened window select the folder in which photos with the JPG files with violations are to be exported. Click OK.

As a result all photos with JPG files with violations corresponding to event search results will be exported to the specified folder.

Info
titleNote.

If the Debug4 mode is enabled, then besides the JPG-file containing frames from primary and synchronous cameras and meta-information, there will also be exported an archive containing the information for the Arena module and frames from the synchronous camera.

...
