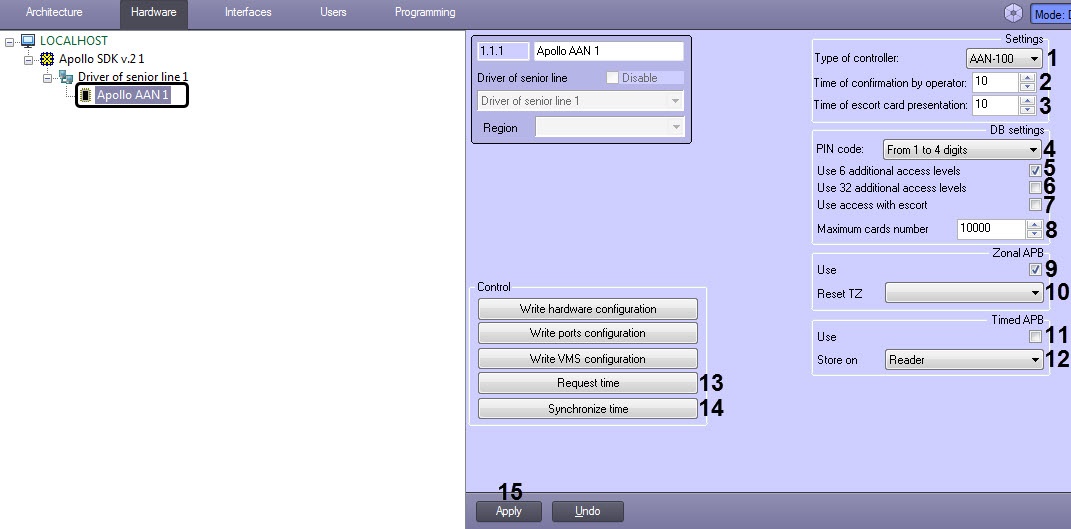

The AAN controller is configured on the settings panel of the Apollo AAN object created on the basis of the Driver of senior line object.

The AAN controller is configured as follows:

1. From the Type of controller: drop-down list select the type of AAN controller (AAN-32 or AAN-100) depending on the type of hardware being used (1).

2. In the Time of confirmation by operator: field enter the time period in seconds for operator to make a decision to grant or deny access (2).
3. In the Time of escort card presentation: field enter the time period in seconds between the presentation of the first and second access cards which, if exceeded, will result in access not being granted (3).
4. From the PIN drop-down list select the length of PIN-code being used. Select the Do not use value if it's not required to use PIN-code (4).

5. Set the corresponding checkboxes if it's required to use additional 6 (5) or 32 (6) access levels.

   Note
   title Attention!
   Maximum number of users storing in controller memory decreases while using additional access levels.




6. To configure antipassback set the Use APB checkbox (7). To configure global antipassback regardless of number of AAN controllers, do the following:
   1. Create regions in the Intellect software package.
   2. Assign regions to readers.
   3. Match number of region in the AAN controller to each region in the Intellect software.

7. In the Maximum number of cards: field enter the maximum number of access cards that will be stored in the controller's memory (9).

   Info
   title Note.
   The maximum number of access cards that can be stored in the controller's memory depends on the number of memory cards installed in it.




8. Click the Apply button.

The AAN controller is now configured.
