The ‘Server with a remote client’ architectural scheme includes one or more Servers/RAWs and RMWsRemote Clients. In this case, service modules are usually used on the RMWRemote Client, and their primary configuration is performed on the Server/RAW.

...

  1. A Server with the ACFA Intellect integration modules and service modules installed on it.
  2. RAWs and RMWs Remote Clients with the ACFA Intellect integration modules and service modules installed on each of them.
  3. The MS SQL Server database.

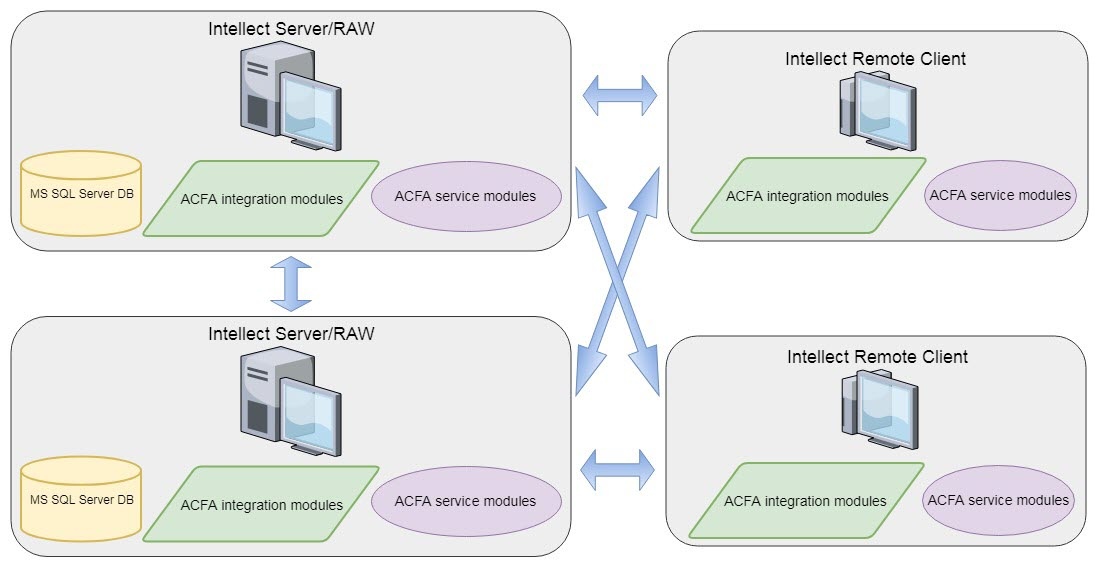

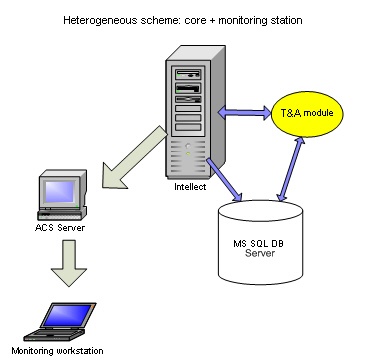

The model of the architectural scheme is presented below.

Image RemovedImage Added

Info
titleNote

This operational architecture schemes is available only for the following ACFA Intellect service modules:

  • Time and Attendance;
  • Event Manager;
  • Access Manager.

...
