To create the Monitor object, do the following:

1. Select the required Display object  in the Interfaces tab of the System settings dialog box.

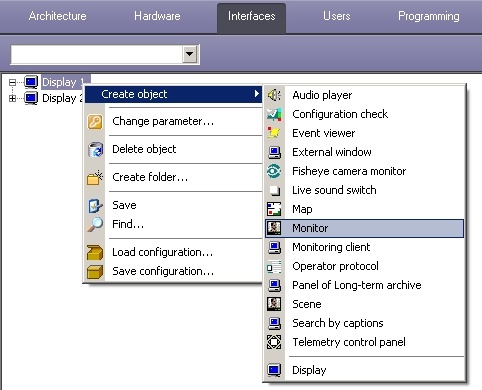

2. Double-click the right mouse button upon the selected Display object  and select Create object > Monitor in the contextual window.


3. Set the number and name of the Monitor object and click the Apply button.

   Note
   title Important!
   The Monitor object number should be a positive integer. You should not use numbers containing commas, dots or any other characters, otherwise the Monitor will become non-functional.




   Info
   title Note.
   As a result the settings panel for the Monitor object will be displayed.




4. Repeat steps 1-3 for all required Display and Monitor objects.

The Monitor object is now created.
