| Info | ||
|---|---|---|
| ||
To go to the required page, enter its number in the field (2), and then click Enter on the keyboard. |
To print the Event search results or/and export them to one of the most commonly used formats click File → Print in the main menu of the window Event search in the Recognizers DBs.
As a result the search results report preview program will launch.

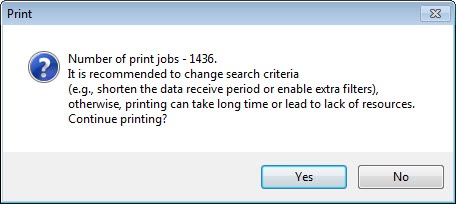

If there are more than 1000 entries in the search results the following message will be displayed before the preview report program launch.
Click Yes to continue. Click No to come back to change the search criteria.
Perform the necessary operations with a report and then quit the program Preview report by clicking File -> Exit in the main menu or by clicking the button
(see step 4 in the section Printing and exporting the vehicle data).
The data about violations are exported into JPG files. The file contains the camera frame, the synchronous camera frame and meta-information in the Arena module format. This functionality is required for integration with the TRIS. The exported file can be opened in any program designed to view JPG files, but only the frame received from the main camera will be displayed.
To export the data about violations to files select the Export item in the File of the main menu in the window Event search in the Recognizers DBs.
In the opened window select the folder in which the JPG files with violations are to be exported. Click OK.
As a result all JPG files with violations corresponding to event search results will be exported to the specified folder.
| Info | ||
|---|---|---|
| ||
If the Debug4 mode is enabled, then besides the JPG-file containing frames from primary and synchronous cameras and meta-information, there will also be exported an archive containing the information for the Arena module and frames from the synchronous camera. |
