Name

Method of setting the parameter value

Default value

Description

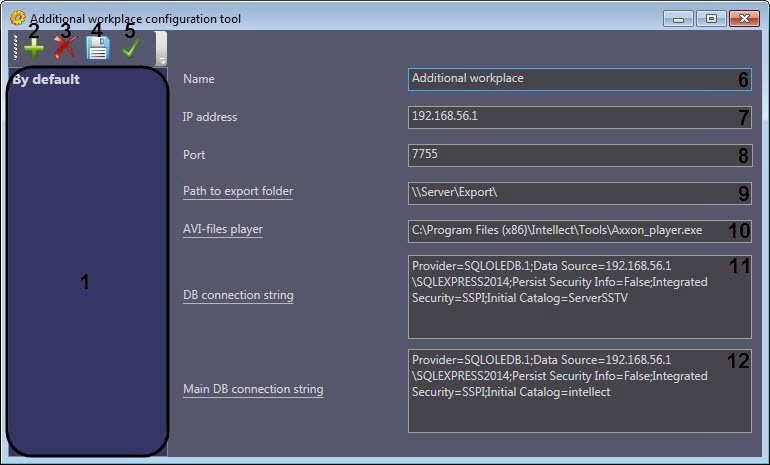

1

List of ATM-Intellect Workstations

The Add, Remove and Set as active buttons

By default there is the ATM-Intellect Workstation in the list. It is named By default and is created during installation.

Displays the list of existing ATM-Intellect Workstations. An active ATM-Intellect Workstation is highlighted in bold.

2

The Add button

Click the button

-

Adding a new ATM-Intellect Workstation to the list.

3

The Delete button

Click the button

-

Deleting a selected ATM-Intellect Workstation from the list.

4

The Save button

Click the button

-

Saving the changes

5

The Set as active button

Click the button

-

Setting an active ATM-Intellect Workstation.

6

The Name field

Enteravalue in the field

See #1. When a new ATM-Intellect Workstation is added to the list it is named New by default.

Setting a name for ATM-Intellect Workstation. This name is used only in this tool.

7

The IP address field

Enteravalue in the field

127.0.0.1

Important! The value of this parameter is to be changed according to the IP address of the ATM-Intellect Workstation.

Setting the IP address to connect to VideoSrv module.

8

The Port field

Enteravalue in the field

7755

Setting a port to connect to VideoSrv module.  The port used by the ATM-Intellect Workstation is specified on the settings panel of the corresponding object when setting the ATM-Intellect Workstation – see Setting the ATM-Intellect Workstation connection parameters section.

9

The Path to export folder field

The Path to export folder link or enteravalue in the field

-

Setting a path to the network folder on the ATM-Intellect Workstation where there are archive files requested from the ATM-Intellect Pro.

10

The DB connection string field

The DB connection string link

-

Setting the ATM-Intellect Workstation DB connection string. The Data Link Properties box appears when clicking the DB connection string link.
