1. When using a hardware token, make sure that it is connected to the USB connector.
2. Download the utilities at the following links:
   1. haspdinst.exe;
   2. hasp_RUS.exe.

3. In the Windows command line, run the security key driver installation command: haspdinst.exe -i

   Info
   title Note
   Make sure that the current directory in the command line is similar to the one where the haspdinst.exe file is located.




4. Wait for the installation to complete.


5. Click OK in the installation completion window.

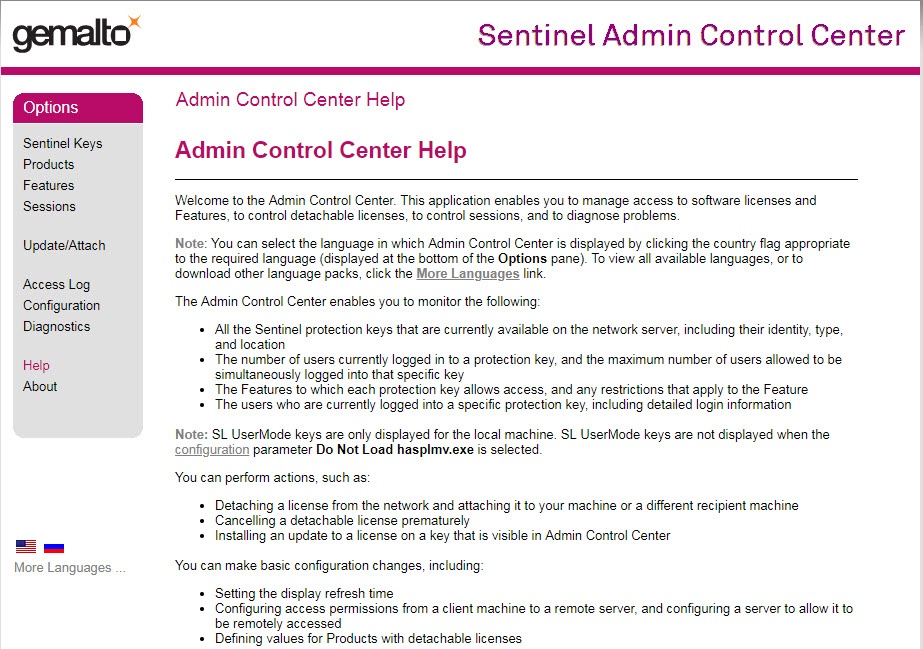

6. Make sure that the Sentinel LDK License Manager service is in the Running status, and the Sentinel Admin Control Center web portal can be opened. To do this, open thehttp://127.0.0.1:1947/_int_/ACC_help_index.htmlpage in the browser.

7. Run the hasp_RUS.exe file for the remote update system. The RUS window will open.

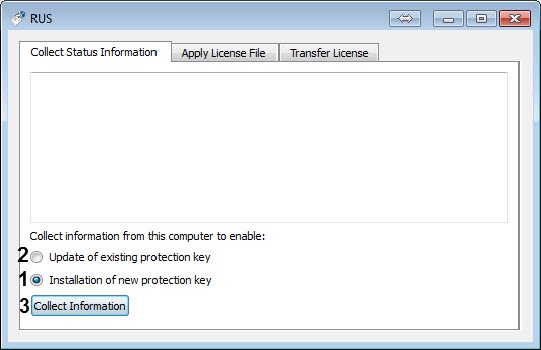

8. To get a key for a "clean computer", set the Installation of new protection keycheckbox (1). If a key is already in use, then set the Update of existing protection keycheckbox (2).
9. Click the Collect Information button (3).

10. Save the file with the .c2v extension to the necessary directory.

    Info
    title Note

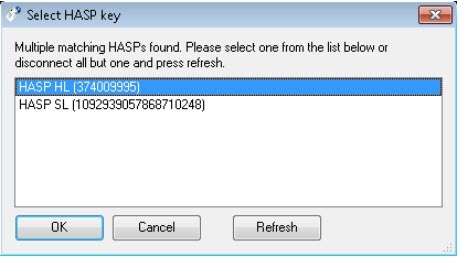

    If several license keys are installed on the local computer, then when saving a c2v file, it is necessary to select the key which snapshot is to be generated. You can see the characteristics of the security keys currently available on the Server using the Sentinel Admin Control Center application.



11. Close the hasp_RUS.exe utility.
12. Send the resulting file with the .c2v extension to the AxxonSoft manager.
13. Receive the license file with the .v2c extension from the AxxonSoft manager.

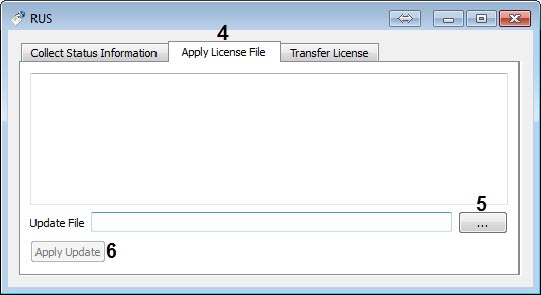

14. Run the hasp_RUS.exe utility and go to the Apply License File tab (4).

15. Specify the path to the received license file in the Update File field using the ...button (5).
16. Click the Apply Update button (6).

...
