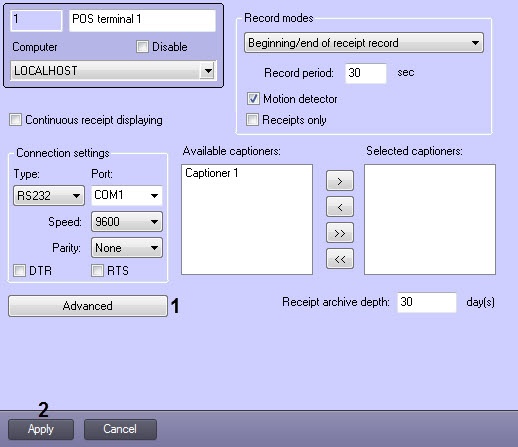

1. Click the Advanced button and select the Text Events tab in the dialog window that opens.
   Image Modified
   Image Modified

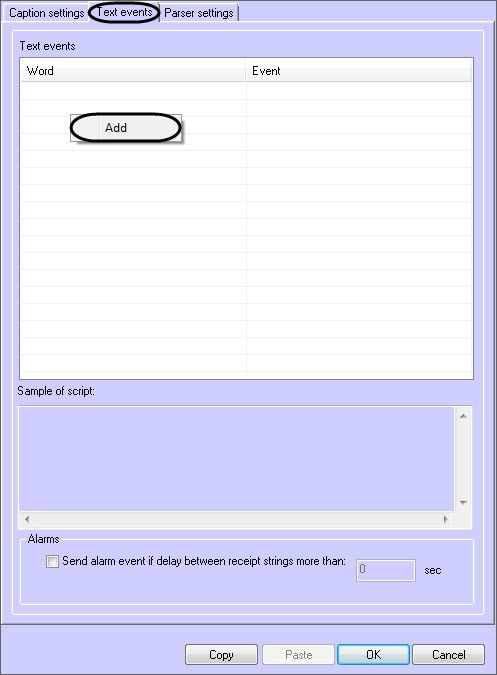

2. Right-click an empty cell in the table and select Add in the drop-down menu.
3. In the Word field of the Text Events dialog box, enter the word which will activate an event (1).

4. In the Event drop-down list, select the event to be activated (2).
   To set up the events, use the configuration setup utility (ddi.exe) located in the Tools folder of the Intellect program folder. Using the ddi.exe utility is described in the Intellect Software Package: The Administrator’s Guide document.

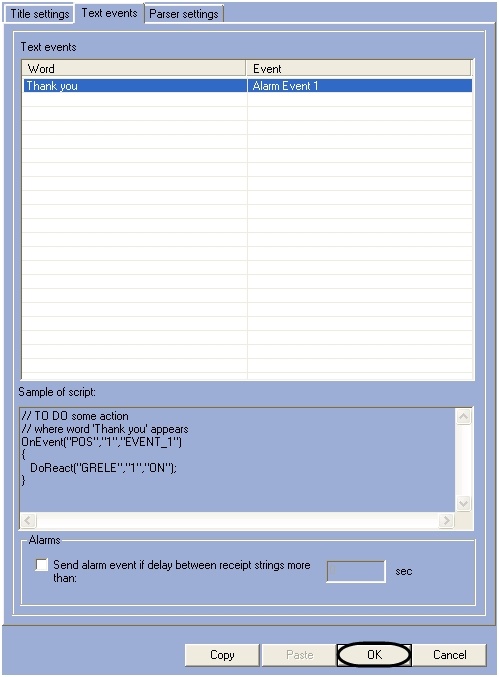

5. Click OK to save the values and close the Text events window (3).

6. Repeat steps 2 to 5 for all words and events.

   Info
   title Note.

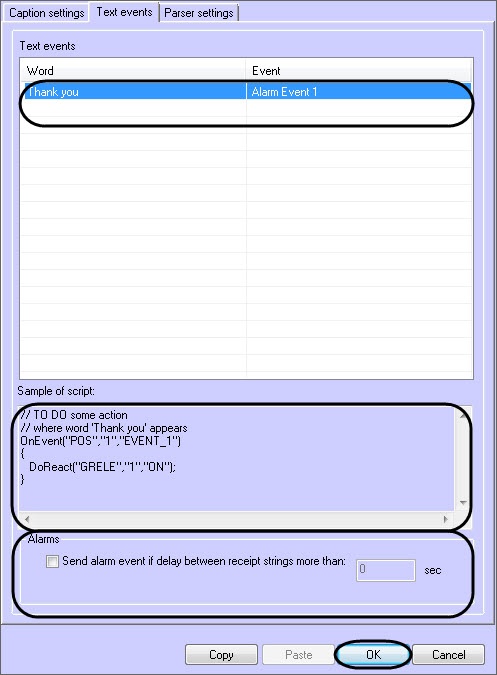

   To modify the words in the table, right-click a word or event to open the drop-down menu, or use the Copy or Paste buttons. Click a line in the table to see the script processing the word/event pair in the Script field.

   Image Modified

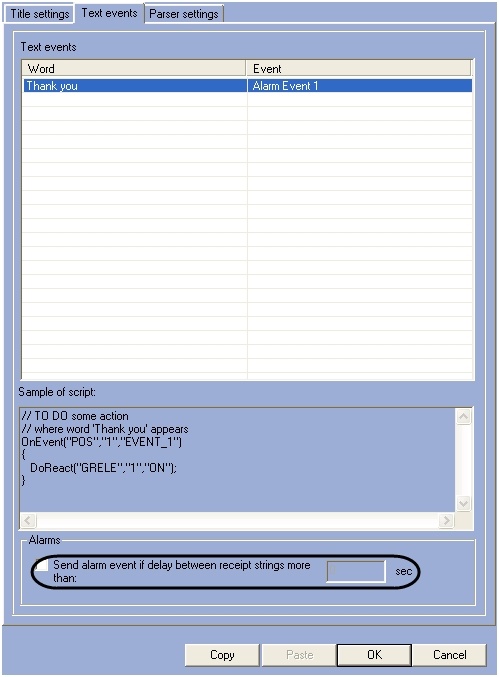

7. To enable generating an alarm if receipt line processing is delayed for more than a certain time interval, check the Send alarm if delay between receipt lines is more than checkbox and enter the delay (in seconds) in the field next to it.Image Removed
8. Click OK to close this dialog window, then click Apply in the POS-terminal object settings panel.

Image Removed

...

The text events rules are now set.
