1. Start the file setup.exe from the installation kit. The installation wizard informs that the installation process has begun.
   Image Removed You are prompted to start installation. Click the Next button.
   Image RemovedImage Added
2. In the License agreement window read the terms of the End-User License Agreement . Set the switch into the I accept the terms in the license agreement position and press Next.
   Image RemovedImage Added

3. Set the Additional workplace installation type. Click Next.
   Image RemovedImage Added

4. A dialog box to configure database connection will be displayed. Select the database server name and set up the connection parameters.
   Image RemovedImage Added

5. In the Database field specify the name of existing database or select it in the list of databases, which are created in the server, and click <<.

   Info
   title Note
   The default name of the database is MonitorSSTV.

   Image RemovedImage Added

   Click Next.
6. Specify the export catalog path. This catalog will contain video data received from ATM-Intellect Pro.
   Image RemovedImage Added

7. Specify IP-address and port for connection to ATM-Intellect Workstation communication module videosrv.
   Image RemovedImage Added

   Info
   title Note.
   It is strongly recommended to change default Export catalog path and IP address. Otherwise, after the installation is completed, it will be necessary to configure Additional workplace (see Additional workplace configuration).




8. Click Install in the next dialog box.
   Image RemovedImage Added
9. Installation begins.
   Image RemovedImage Added

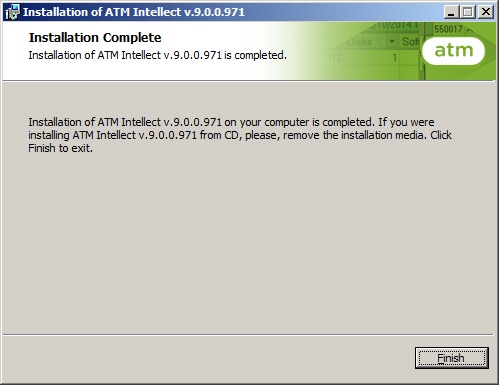

10. After the final installation tasks are completed, the wizard informs that the software has been successfully installed. Click Finish.
    Image RemovedImage Added

Additional workplace installation is completed.
